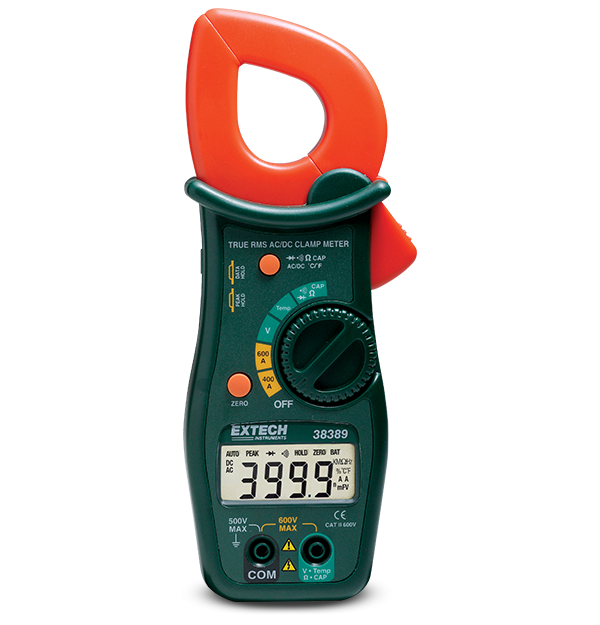

Extech 38389
600A True RMS AC/DC Clamp Meter
The Extech 38389 Clamp Meter measures AC/DC current up to 600 A with 0.1 A resolution. The 33 mm (1.25 in) jaw accommodates conductors up to 350 MCM. The meter's peak hold function can be activated to capture and store the highest reading. Its multimeter functions include AC/DC voltage to 600 V, resistance to 40 MOhm, and capacitance to 100 mF. This meter also measures temperature from -20°C to 760°C (-4°F to 1400°F). Comes complete with test leads, belt holster, 9 V battery, and Type K temperature probe.
Specifications
| General | |
|---|---|
| AC Current | 400A, 600A |
| AC Current Basic Accuracy | ±(3.0% of reading + 5 digits) |
| AC Current Max Resolution | 100mA |
| AC Voltage | 4V, 40V, 400V, 600V |
| AC Voltage Basic Accuracy | ±(0.8% of reading + 3 digits) |
| AC Voltage Max Resolution | 1mV |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 100µF |
| Capacitance Max Resolution | 0.01nF |
| Continuity | Beeper ≤50Ω |
| DC Current | 400A, 600A |
| DC Current Basic Accuracy | ±(2.5% of reading + 3 digits) |
| DC Current Max Resolution | 100mA |
| DC Voltage | 400mV, 4V, 40V, 400V, 600V |
| DC Voltage Basic Accuracy | ±(0.5% of reading + 2 digits) |
| DC Voltage Max Resolution | 0.1mV |
| Jaw Size | 1.25" (33mm), conductors up to 350MCM |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Resistance Max Resolution | 0.1Ω |
| Temperature [Contact] | -4 to 1400°F (-20 to 760°C) |
| Temperature [Contact] Basic Accuracy | ±(3.0% of reading + 3°F/2°C) |
| Temperature [Contact] Max Resolution | 1°F/°C |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 3.1 × 8 × 1.6" (79 × 203 × 41mm) |
| Display | Segment LCD |
| Power | 1 × 9V battery |
| Safety Category | CAT II-600V |
| Warranty | 2 years |
| Weight | 6.5oz (185g) |
