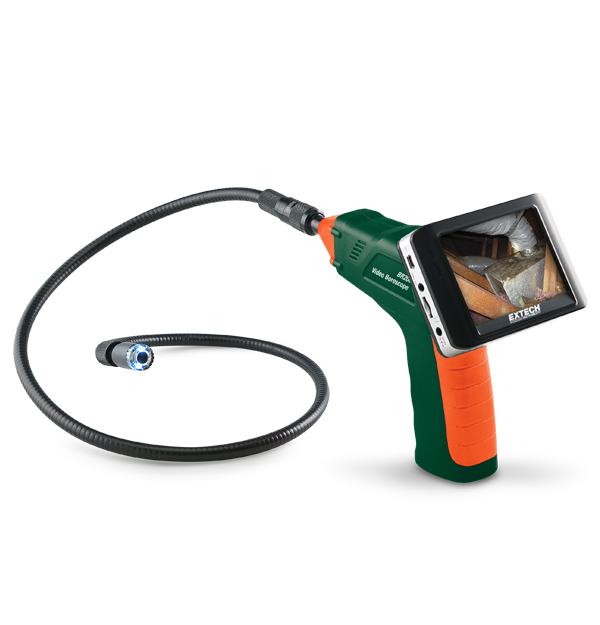

Extech BR200
Video Borescope/Wireless Inspection Camera
The Extech BR200 is a Video Borescope Inspection Camera with 17 mm camera diameter and a 8.9 cm (3.5 in) color TFT LCD Monitor. Ideal for home inspection, HVAC, automotive, industrial, aerospace, and security applications. It features a glare-free, close-up field of view and a detachable, wireless color display that can be viewed up to 8.9 m (32 ft) from measurement point. Complete with four AA batteries, microSD memory card with SD adapter, USB cable, extension tools (mirror, hook, magnet), video cable, AC Adapter (100 V - 240 V, 50 Hz/60 Hz), magnetic base stand, and a hard case.
Specifications
| General | |
|---|---|
| Field of view [FOV] | 50° |
| Focus Distance | 5.9 to 9.8" (15 to 25cm) |
| Output Format | 960 × 240 (avi format); 640 × 480 (jpeg format) |
| Resolution | 712 × 486 (NTSC) |
| Video Output Level | 0.9 to 1.3V@75Ω |
| Wireless Transmission Frequency | 2468MHz |
| Wireless Transmission Range | 32ft (10m) unobstructed view |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | Camera: 7.3 × 5.7 × 1.6" (186 × 145 × 41mm), Monitor: 3.9 × 2.7 × 1" (100 × 70 × 25mm) |
| Display | 3.5" TFT (320 × 240 pixels) |
| Power | 4 × AA (1.5V) batteries |
| Warranty | 2 years |
| Weight | 18.7oz (530g) , 4.9oz (140g) |
Resources & Support
Certification
Extech BR200 Declaration of Conformity
User Manual
Extech BR200 BR250 User Manual GB
Datasheet
Extech BR200 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
