Discontinued

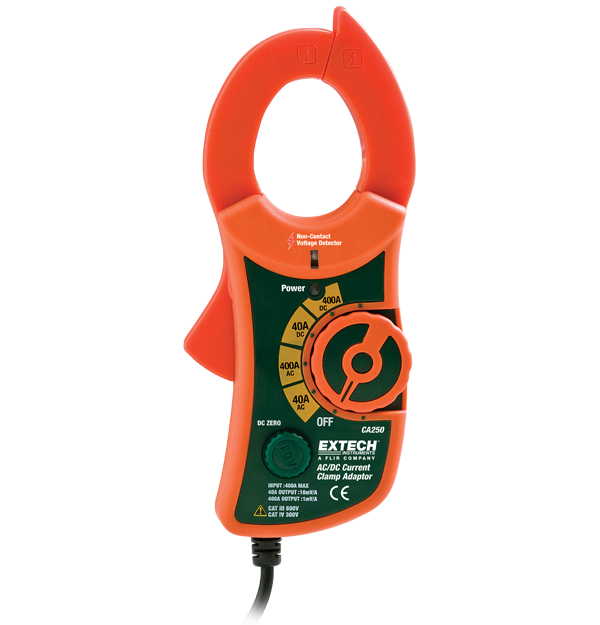

Extech CA250
400A AC/DC Clamp-on Adaptor + NCV
The Extech CA250 is a 400 A AC/DC Clamp-on Adaptor with built in NCV that can be used with any multimeter with a 1 mV input and accepts standard banana plugs. It has a 30 mm (1.2 in) clamp jaw and 2.5% accuracy. Additional features include a built in, non-contact voltage detector with LED alerts and a DC zero adjust. Comes complete with built in 1.1 m (3.8 ft) cable with banana plugs and two AAA batteries.
Specifications
| General | |
|---|---|
| AC Current | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| AC Current Basic Accuracy | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| DC Current | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| DC Current Basic Accuracy | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| Frequency | 50/60Hz |
| Jaw Size | 30mm (1.2") |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 5.8 × 2.3 × 1.3" (146 × 60 × 32mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 600V, CATIV - 300V |
| Warranty | 2 years |
| Weight | 8oz (226g) |
Resources & Support
Datasheet
Extech CA250 Datasheet
Certification
Extech CA250 Declaration of Conformity
User Manual
Extech CA250 User Manual GB
Export Restrictions
