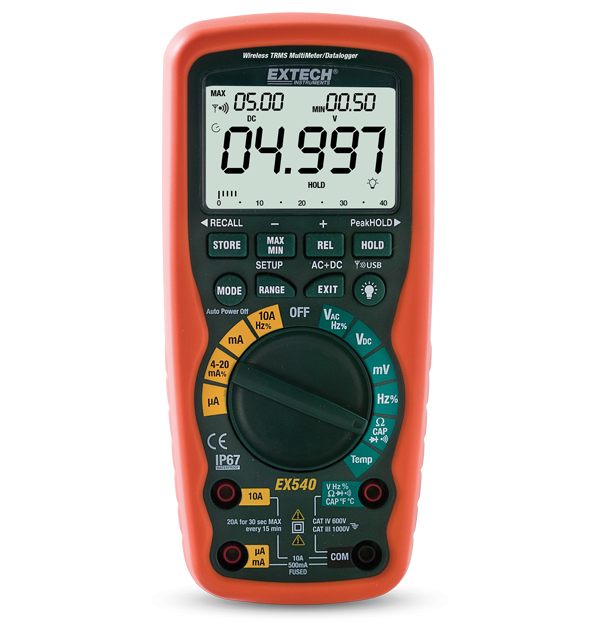

Extech EX540
12 Function Wireless True RMS Industrial MultiMeter/Datalogger
The Extech EX540 offers wireless connectivity to your laptop or PC using a USB receiver with a range comparable to Bluetooth (10 m/33 ft). The EX540 transmits real-time data for monitoring, trending, and analysis (using the included software) on one of two available frequencies (914 MHz). Now electrical professionals can monitor and data log readings at a safe distance from hazardous locations. Additionally, it is easier to perform remote tasks such as powering up a device from a control panel that is not nearby. From a time-saving perspective for laptop users, the EX540 permits a user to set up their laptop at a centralized location and then sequentially data log readings throughout a site without relocating the laptop. In addition to wireless data logging, the EX540 can log up to 9,999 readings internally and also reads voltage, current, resistance, capacitance, frequency (with dual-range sensitivity for electrical and electronic work), duty cycle, continuity, diode testing, and even temperature using its Type K thermistor bead probe. Complete with double-molded test leads, USB wireless receiver (914 MHz), temperature probe, magnetic hanging strap, 9 V battery, and carrying case.
Specifications
| General | |
|---|---|
| AC Current | 0.01µA to 20A |
| AC Voltage | 0.01mV to 1000V |
| Capacitance | 0.001nF to 40mF |
| Continuity | Yes |
| DC Current | 0.01µA to 20A |
| DC Voltage | 0.01mV to 1000V |
| Diode Test | 2.8V |
| Duty Cycle | 0.1 to 99.9% |
| Frequency | Electrical: 40Hz to 4kHz, Electronic: 0.001Hz to 100MHz |
| Resistance | 0.01Ω to 40MΩ |
| Temperature [Type K] Max Resolution | -58 to 1382°F (-50 to 750°C) |
| True RMS | Yes |
| Wireless Transmission Frequency | 915MHz |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 7.25 × 3.25 × 2.25" (184 × 83 × 57mm) |
| Display | 40000-count segment LCD |
| IP Rating | IP67 |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 3 years |
| Weight | 12.3oz (349g) |
