Extech EX720
800A AC Clamp Meter

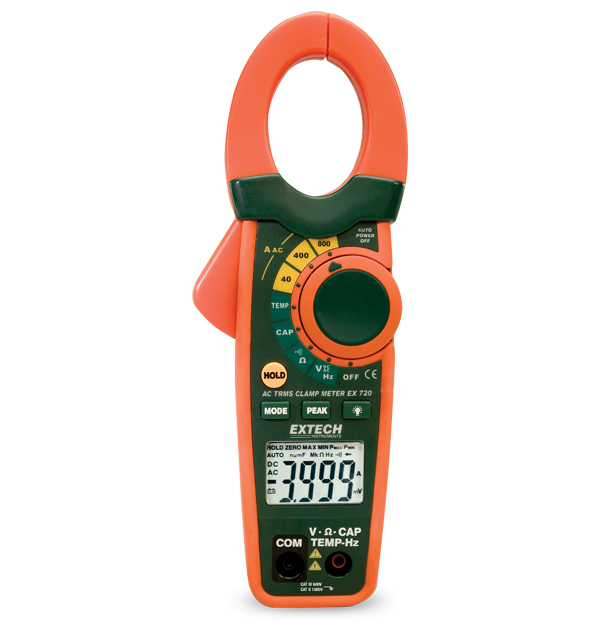

The Extech EX720 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX720 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX720 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and belt holster.
Specifications
| General | |
|---|---|
| AC Current | 0.01 to 800A |
| AC Current Basic Accuracy | ±2.5% |
| AC Voltage | 0.1mV to 600V |
| AC Voltage Basic Accuracy | ±1.5% |
| Capacitance | 0.001nF to 40,000µF |
| Continuity | Yes |
| DC Voltage | 0.1mV to 600V |
| DC Voltage Basic Accuracy | ±1.5% |
| Diode Test | Yes |
| Frequency | 0.001 to 4kHz |
| Frequency Basic Accuracy | ±1.5% |
| Inrush Current | Yes |
| Jaw Size | 1.2" (30mm), conductors up 500MCM |
| Resistance | 0.1 to 40MΩ |
| Temperature [Type K] Max Resolution | -4 to 1400 °F (-20 to 760 °C) |
| Temperature [Type N] | ±(3% of reading + 9°F/5°C) |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| Power | 1 × 9V battery |
| Safety Category | CATIII - 600V |
| Warranty | 2 years |
| Weight | 10.7 oz (303g) |
Resources & Support
Datasheet
Extech EX7xx Datasheet
Certification
Extech EX720 Declaration of Conformity
User Manual
Extech EX720 User Manual
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
