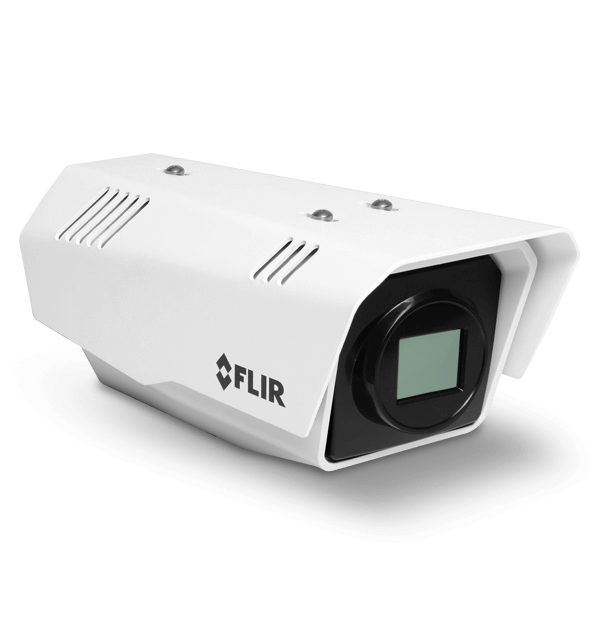

FC T2-Series
Thermal imaging camera for traffic monitoring
Product Variations
FLIR FC-T2 sensors deliver superior image accuracy and reliability for traffic monitoring applications. The FLIR FC-T2 thermal camera can monitor vehicles in a wider variety of conditions than traditional visible-light sensors. By detecting the heat of all objects in the scene, the FC-T2 operates in broad daylight or total darkness, poor weather and even light fog. Combined with FLIR’s vehicle presence detection boards, the FC-T2 makes a great solution for intersection traffic control.
Reliable intersection monitoring, day and night
The analog FLIR FC T2-Series produces high-quality thermal images on which the smallest of details can be seen.
FLIR FC-T2 cameras can be easily integrated into any existing infrastructure providing early detection and visibility 24/7 all the year round.
The FLIR FC-T2 Series are extremely rugged systems that work perfect in all climates.
Specifications
| Communications | |
|---|---|
| Video Output | NTSC, analog |
| Electrical | |
|---|---|
| Consumption | 5.5 W nominal at 110 VAC, 23 W peak with heaters |
| Environmental | |
|---|---|
| Encapsulation | IP66 + IP 67 (IEC 60529) |
| Operating Temperature Range | -50° to 75°C (Cold start: -40° to 70°C) -58° to 167°F (Cold start: -40° to 158°F) |
| Requirements | 90-240VAC, single phase 50-60Hz |
| Shock | Mil-Std-810F |
| Storage Temperature Range | -55° to +85°C (-67° to +185°F) |
| Vibration | IEC 60068-2-27 |
| Imaging & Optical | |
|---|---|
| Automatic Heater | Clears up to 4mm of ice from windows Automatic deicing, tested according to MIL-STD-810F Method 521.1 |
| Detector Type | Focal Plane Array (FPA), uncooled Vanadium Oxide (Vox) microbolometer |
| Field of View | FLIR FC317-17°: 17° x 13° FLIR FC324-24°: 24° x 18° FLIR FC332 -32°, FLIR FC632-32°: 32° x 26° FLIR FC344-44°, FLIR FC632-44°: 44° x 36° |
| Focus | Focus free, athermal lens |
| Image Frequency | NTSC: 30Hz |
| Image Processing | Automatic Gain Control (AGC), Digital Detail Enhancement (DDE) |
| Image Uniformity Optimization | Automatic Flat Field Correction (FFC) |
| Sensor Resolution | FLIR FC317-17°, FLIR FC324-24°, FLIR FC332 -32°, FLIR FC344-44°: 320 x 240 FLIR FC632-32°, FLIR FC632-44°: 640 x 480 |
| Spectral Range | 7.5 to 13.5µm |
| Thermal Sensitivity | <50 mK f/1.0 |
| Mechanical | |
|---|---|
| Sensor Size [L x W x H] | 259 x 114 x 106 mm (10.2 x 4.49 x 4.17 in) without sunshield 282 x 129 x 115 mm (11.1 x 5.08 x 4.53 in) with sun shield |
| Sensor Weight | 1.8 kg (3.97 lbs) without sunshield 2.2 kg (4.85 lbs) with sun shield |
| Shipping Size [sensor and packaging][l x w x h] | 366 x 188 x 178 mm (14.41 x 7.40 x 7.01 in) |
| Regulatory | |
|---|---|
| Approvals | EN 55022:2010, Class B EN 61000-3-3: 2008 EN 61000-3-2: 2006+A1: 2009 & A2 2009 EN 55024:2010, EN 51030-4: 2011 FCC Part 15, Subpart B, Class A IP 66 + IP 67 (IEC 60529) IEC 60068-2-27 EN 60950-1 EN 60950-22 |
