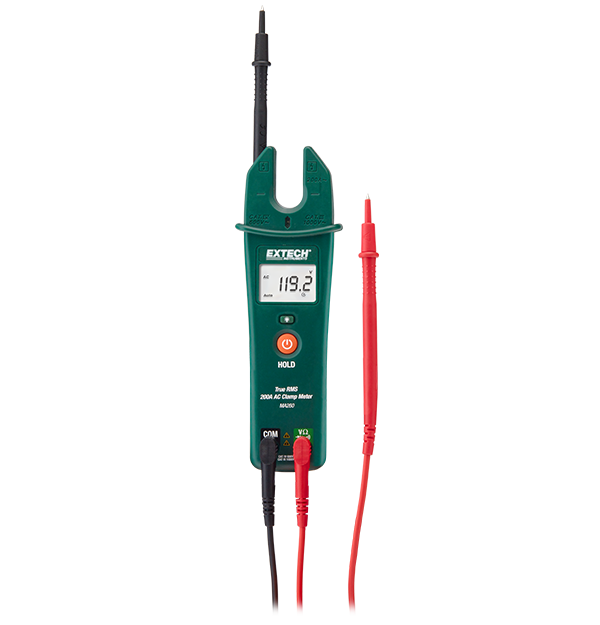

Extech MA260
True RMS 200A AC Open Jaw Clamp Meter
The Extech MA260 is a True RMS 200 A AC Open Jaw Clamp Meter. The MA260 has a built in NCV detector and can measure up to 200 A in its 15.2 mm (0.6 in) open jaw. It includes true RMS for accurate readings of noisy, distorted or non-sinusoidal waveforms. Complete with test leads and two AAA batteries. UL listed with a CAT IV 600V safety rating.
Specifications
| General | |
|---|---|
| AC Current | 200A |
| AC Current Basic Accuracy | ±3.0% |
| AC Current Max Resolution | 0.1A |
| AC Voltage | 1.3V to 1000V |
| AC Voltage Basic Accuracy | ±0.9% |
| AC Voltage Max Resolution | 0.1V |
| Continuity | Yes |
| DC Voltage | 1000V |
| DC Voltage Basic Accuracy | ±0.3% |
| DC Voltage Max Resolution | 0.1V |
| Diode Test | Yes |
| Jaw Size | 0.6" (16mm) |
| Non-Contact Voltage (NCV) Detector | 80 to 1000VAC |
| Resistance | 0 to 10kΩ |
| Resistance Max Resolution | 1Ω |
| True RMS | Yes |
| Additional Details | |
|---|---|
| Certifications | CE, UL |
| Dimensions | 7.6 × 2.1 × 1.2" (193 × 54 × 31mm) |
| Power | 2 × AAA (1.5V) batteries |
| Safety Category | CATIII - 1000V, CATIV - 600V |
| Warranty | 2 years |
| Weight | 9.9oz (280g) |
