FLIR G609
High Resolution Furnace and Boiler Inspection Camera
Product Variations

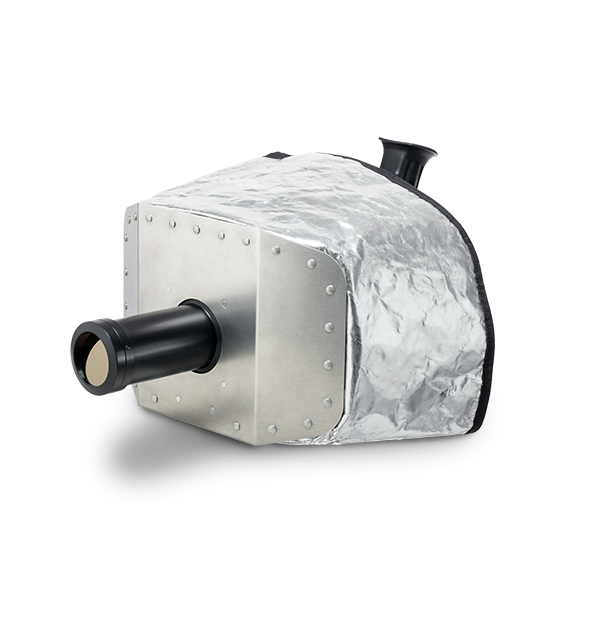

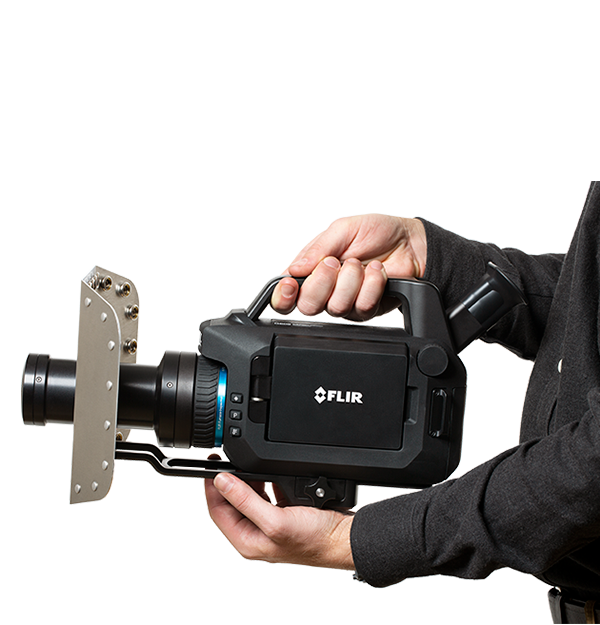

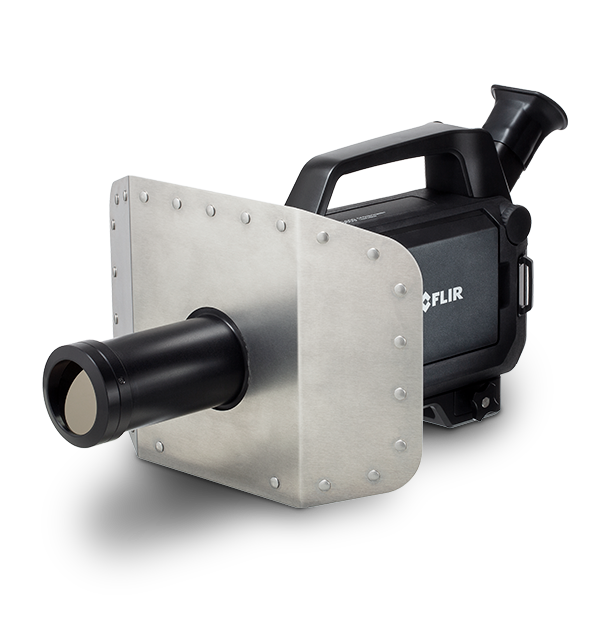

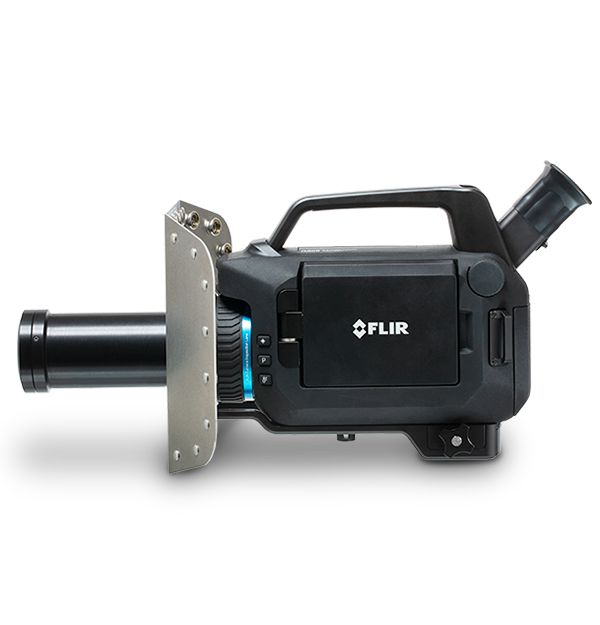

The FLIR G609 is designed for high temperature industrial furnace applications. These infrared cameras are ideal for monitoring all types of furnaces, heaters, and boilers, particularly in the chemical, petrochemical, and utility industries. Engineered to see through flames, the G609 comes with a detachable heat shield and a customized furnace inspection lens. Together, these features enhance operator safety by reflecting heat away and providing a clearer view of assets, ensuring optimal protection and visibility during operation.
See More, Stay Safe
By accurately measuring temperature across the entire surface, the G609 IR camera helps you inspect faster, work safer, and avoid shutdowns.
Save time when planning an inspection and creating a report. Generate routes and simplify reporting with Route Creator in FLIR Thermal Studio.
See and measure smaller details at a distance with 640-resolution detectors and specialized filters that enable clear imaging through furnace flames.
Specifications
| Highlighted | |
|---|---|
| IR Resolution | 640 × 480 thermal resolution (307,200 pixels) |
| Detector Pitch | 15 μm |
| Accuracy | ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F) |
| Imaging & Optical | |
|---|---|
| Color palettes | Arctic, White hot, Black hot, Iron, Lava, Rainbow, Rainbow HC |
| Detector Pitch | 15 μm |
| Detector Type | Focal plane array (FPA), cooled InSb |
| f number | 2.9 |
| Field of View | 24° × 18° (23 mm) |
| Focus | Auto & Manual |
| Image Analysis | 10 spots, 5 boxes with max/min/average, 1 line (horizontal or vertical), measurement corrections |
| Image Modes | IR image, visual image, high sensitivity mode (HSM), noise reduction filter |
| IR Resolution | 640 × 480 thermal resolution (307,200 pixels) |
| Laser Spot | Yes |
| Minimum Focus Distance | 0.3 m (1.0 ft) |
| MPEG Video Recording | Yes |
| Non_radiometric IR video streaming | • H.264 (AVC) over RTSP (Wi-Fi) • MPEG4 over RTSP (Wi-Fi) • MJPEG over UVC and RTSP (Wi-Fi) |
| Sensor Cooling | Stirling Microcooler (FLIR MC-3) |
| Thermal Sensitivity_NETD | 20 mK @ 30°C (86°F) |
| Zoom | 1 – 8× continuous, digital zoom |
| Measurement & Analysis | |
|---|---|
| Accuracy | ±1°C (±1.8°F) for temperature range 0°C to 100°C (32°F to 212°F) or ±2% of reading for temperature range >100°C (>212°F) |
| Spot Meter | 10 |
| Temperature Range | -20°C to 1500°C (-4°F to 2732°F) |
| Communication & Data Storage | |
|---|---|
| Video Out | HDMI 640 × 480, HDMI 1280 × 720, DVI 640 × 480, DVI 800 × 600 |
