Extech 380976-K
単相/三相1000A AC電源クランプメーターキット

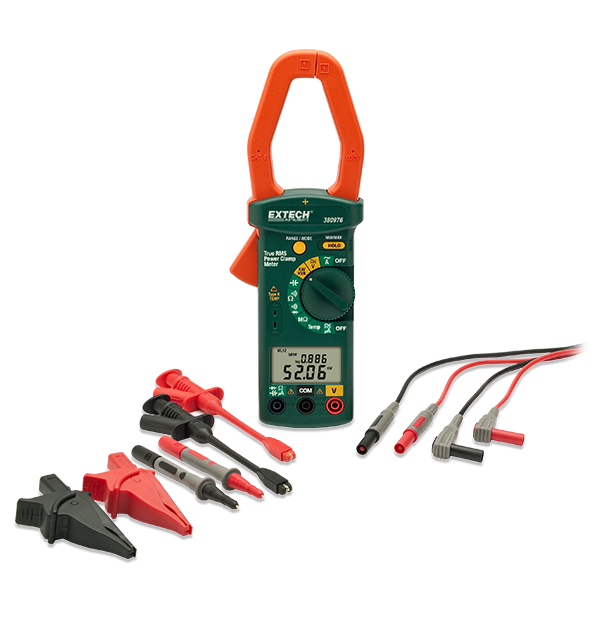

380976-Kは、単相/三相1,000アンペアAC電源クランプメータキットです。リード/ラグインジケータにより、単相/三相True Power （kW）、皮相電力（kVA）、無効電力（kVAR）、馬力（HP）、力率、位相角を測定します。同時周波数表示でAC/DC電圧測定値を自動検出。さらに、付属のテストリードキットには、CAT IV 72−(*テストリード2本、モジュール式テストプローブハンドル2本、プランジャー作動ジョークリップ2個、特大ワニ口クリップ2個が含まれています。テストリードキット、タイプKプローブ、キャリングケース、9Vバッテリーが付属しています。
仕様
| 一般仕様 | |
|---|---|
| AC Current | 1000A |
| AC Current Basic Accuracy | ±2% |
| AC Current Max Resolution | 10mA |
| AC Microcurrent | 1000µA |
| AC Microcurrent Basic Accuracy | ±1% |
| AC Microcurrent Max Resolution | 10nA |
| AC Voltage | 600 V |
| AC Voltage Basic Accuracy | ±1% |
| AC Voltage Max Resolution | 0.1mV |
| Apparent Power | 600kVA |
| Apparent Power Basic Accuracy | ±2% |
| Apparent Power Max Resolution | 100VA |
| Capacitance | 7000µF |
| Capacitance Max Resolution | 1nF |
| DC Microcurrent | 1000µA |
| DC Microcurrent Basic Accuracy | ±1% |
| DC Microcurrent Max Resolution | 10nA |
| DC Voltage | 600 V |
| DC Voltage Basic Accuracy | ±1% |
| DC Voltage Max Resolution | 0.1mV |
| Frequency | 40Hz～1kHz |
| Frequency Basic Accuracy | ±0.5% |
| Frequency Max Resolution | 0.1Hz |
| Horsepower | 800HP |
| Horsepower Basic Accuracy | ±5% |
| Horsepower Max Resolution | 0.01HP |
| Low Resistance | 1000kΩ |
| Low Resistance Basic Accuracy | ±1% |
| Low Resistance Max Resolution | 0.1Ω |
| Phase | -60～+60° |
| Phase Basic Accuracy | ±6° |
| Phase Max Resolution | 0.1° |
| Reactive Power | 600kVAR |
| Reactive Power Basic Accuracy | ±5% |
| Reactive Power Max Resolution | 10VAR |
| Resistance | 100MΩ |
| Resistance Max Resolution | 1kΩ |
| Temperature [Type K] Max Resolution | -50～900°C |
| Temperature [Type N] | ±1% |
| Temperature [Type N] Basic Accuracy | 0.1°C |
| True Power | 600kW/ 10W |
| True Power Basic Accuracy | ±5% |
| True Power Max Resolution | 10W |
| 追加の詳細 | |
|---|---|
| Certifications | 380976-K-NIST_S：CE、UL、NIST 380976-K_S：CE、UL |
| Dimensions | 228 × 76 × 39mm |
| Power | 9Vバッテリー1個 |
| Safety Category | CAT III-600V |
| Warranty | 2年 |
| Weight | 465g |
