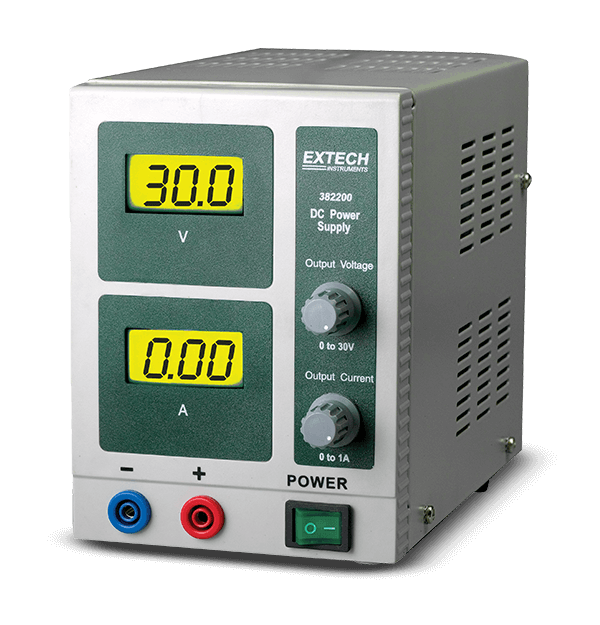

Extech 382200
30V/1Aシングル出力DC電源
デュアルLCD付き定電圧/電流デジタルDC電源
仕様
| 一般仕様 | |
|---|---|
| Line Current Regulation | <0.2% + 3mA |
| Line Voltage Regulation | <0.01% + 3mV |
| Load Current Regulation | <0.2% + 3mA |
| Load Voltage Regulation | <0.01% + 2mV |
| Output Current | 0 - 1.00A DC |
| Output Current Basic Accuracy | ±読み取り値の2% |
| Output Voltage | 30.0V DC |
| Output Voltage Basic Accuracy | ±読み取り値の1.5% |
| Ripple and Noise | <0.5mV/<3mA |
| 追加の詳細 | |
|---|---|
| Dimensions | 240×108×154mm |
| Power | 115V/230V; 50/60Hz |
| Warranty | 2年 |
| Weight | 2kg |
Resources & Support
Certification
Extech 382200 Declaration of Conformity
Datasheet
Extech 382200-382202 Datasheet
User Manual
Extech 382200 382202 User Manual
