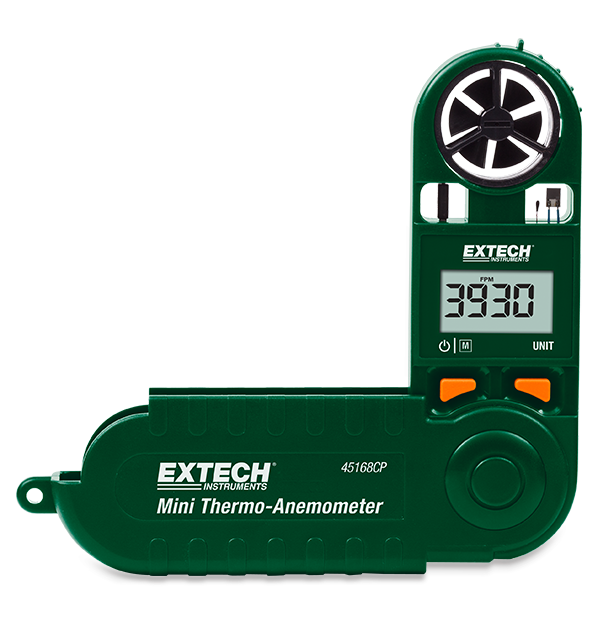

Extech 45168CP
Mini Thermo-Anemometer with Built-in Compass
The Extech 45168CP is a Mini Thermo-Anemometer which measures windspeed in ft/min, MPH, m/s, km/h, knots and in beaufort force with 10 second averaging function. Additional measurements include temperature, relative humidity, dew point, wet bulb, and windchill. The built-in compass provides wind direction and 360° readings, plus it has an easy-to-use calibration procedure for improved accuracy. Its water resistant housing floats and drop-tested to 1.8 m (6 ft). Featuring a replaceable, non-corrosive, plastic wind vane (impeller) and a tripod mount for hands free use. Complete with a CR2032 battery and a lanyard.
仕様
| 一般仕様 | |
|---|---|
| コンパス | 0 to 360° |
| コンパスの基本精度 | ±2° |
| コンパスの最大解像度 | 1° |
| ビューフォート風力 | 1 to 8 BF |
| ビューフォート風力の基本精度 | ±1 BF |
| ビューフォート風力の最大解像度 | 1 BF |
| 温度 (大気) | 5 to 122 °F (-15 to 50 °C) |
| 温度（大気）の基本精度 | ±1.8 °F/1 °C |
| 温度（大気）の最大解像度 | 0.1 ° |
| 湿球 | 23 °F to 122 °F (-5 to 50 °C) |
| 湿球の最大分解能 | 0.1 ° |
| 相対湿度 | 0.1% to 99.9% |
| 相対湿度の基本精度 | ±3% |
| 相対湿度の最大解像度 | 0.10% |
| 露点 | -4 °F to 122 °F (-20 to 50 °C) |
| 露点の最大解像度 | 0.1 ° |
| 風速 (km) | 0.4 to 38.8 knots |
| 風速 (km) の基本精度 | ±(3% of reading + 0.6 knots) |
| 風速 (km) の最大解像度 | 0.1 knots |
| 風速 (km/分) | 60 to 3937 ft/min |
| 風速 (km/分) の基本精度 | ±(3% of reading + 40 ft/min) |
| 風速 (km/分) の最大解像度 | 2 ft/min |
| 風速 (km/時) | 0.8 to 72.0 km/h |
| 風速 (km/時) | 0.5 to 44.7 MPH |
| 風速 (km/時) の基本精度 | ±(3% of reading + 1.4 km/h) |
| 風速 (km/時) の基本精度 | ±(3% of reading + 0.4 MPH) |
| 風速 (km/時) の最大解像度 | 0.1 km/h |
| 風速 (km/時) の最大解像度 | 0.1 MPH |
| 風速 (m/秒) | 1.1 to 20 m/s |
| 風速 (m/秒) の基本精度 | ±(3% of reading + 0.2 m/s) |
| 風速 (m/秒) の最大解像度 | 0.1 m/s |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × CR2032 (1.5V) lithium battery |
| 寸法 | 5.51 × 1.77 × 0.98" (140 × 45 × 25mm) |
| 認証 | CE |
| 重量 | 3oz (95g) |
