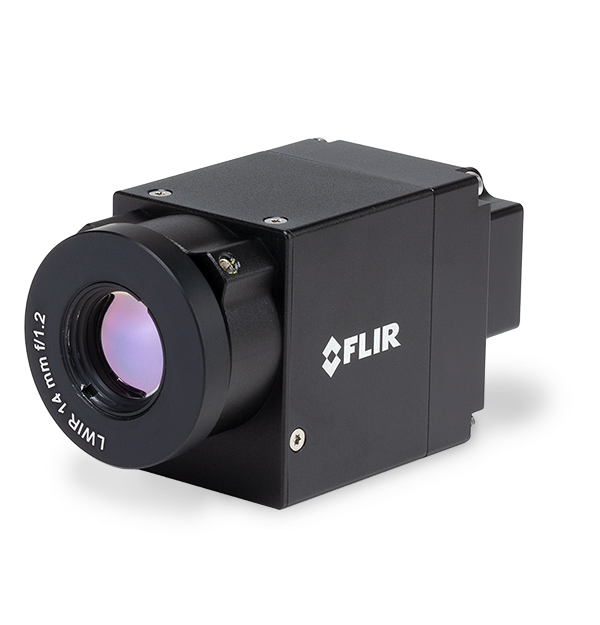

Flir A38/A68
マシンビジョン用サーモグラフィカメラ
Flir A38/A68サーモグラフィカメラはFlirによる最小の非冷却長波長赤外線カメラで、産業オートメーションおよびマシンビジョンアプリケーション向けです。これらのサーモグラフィ温度センサーはプロセス制御および品質保証向けに特別に設計されており、わずかな温度変動の検出が、大きく影響するような用途において重大な意思決定をサポートするために、温度情報を可視化します。コンパクトでシンプルなカメラ設計により、信頼性が高く堅牢なサーモグラフィデータを取得できます。パワー・オーバー・イーサネット（PoE）との簡単な接続および動作温度範囲の拡張により、産業環境に最適なサーモグラフィカメラとなっています。
仕様
| Highlighted | |
|---|---|
| Ethernet Interface | Wired |
| EMC | See User manual: https://support.flir.com/resources/4rur |
| Image Frequency | A38: 60 Hz A68: 30 Hz |
| Thermal Sensitivity_NETD | <50 mK @ 25°C ambient |
| 通信とデータ保存 | |
|---|---|
| Connection Type | RJ-45 |
| Ethernet | For control, image, and power |
| Ethernet Communication | GigE Vision / GenICam |
| Ethernet Interface | Wired |
| Ethernet Power | Power over Ethernet (PoE) |
| Ethernet Protocols | GigEVision |
| Ethernet Standard | IEEE 802.3 |
| Ethernet Type | Gigabit Ethernet |
| イメージングとレンズ | |
|---|---|
| Color | Black |
| Detector Pitch | 17 µm |
| Field of view [FOV] | 11301-0101 FLIR A38 24°: 24° × 18.1° 11301-0102 FLIR A38 42°: 40.1° × 29° 11302-0101 FLIR A68 24°: 24.2° × 18.4° 11302-0102 FLIR A68 42°: 42.1° × 31.9° |
| Focal Length | 11301-0101 FLIR A38 24°: 13 mm (0.51 in) 11301-0102 FLIR A38 42°: 8.1 mm (0.32 in) 11302-0101 FLIR A68 24°: 25 mm (0.98 in) 11302-0102 FLIR A68 42°: 14.2 mm (0.56 in) |
| Focus | Fixed |
| F_number | 11301-0101 FLIR A38 24°: 1.0 11301-0102 FLIR A38 42°: 1.1 11302-0101 FLIR A68 24°: 1.2 11302-0102 FLIR A68 42°: 1.24 |
| Image Frequency | A38: 60 Hz A68: 30 Hz |
| IR Resolution | A38: 320 × 240 pixels A68: 640 × 480 pixels |
| Minimum Focus Distance | 11301-0101 FLIR A38 24°: 0.4 m (1.3 ft) 11301-0102 FLIR A38 42°: 1.5 m (4.9 ft) 11302-0101 FLIR A68 24°: 2.0 m (6.6 ft) 11302-0102 FLIR A68 42°: 1.3 m (4.3 ft) |
| Pixel Format | Mono8 or 16-bit/pixel |
| Spectral Range | 8–14 µm (LWIR) |
| Thermal Sensitivity_NETD | <50 mK @ 25°C ambient |
| 一般仕様 | |
|---|---|
| Package Includes | Infrared camera |
| Packaging Size | 130 × 140 × 100 mm (5.1 × 5.5 × 3.9 in) |
| Packaging Type | Cardboard box |
| Packaging Weight | 0.23 kg (0.51 lb) |
| Size [L x W x H ] w_o Lens | 59 × 29 × 36 mm (2.32 × 1.14 × 1.42 in) |
| Weight [without lens] | 67 g (2.4 oz) |
| 環境と認定 | |
|---|---|
| EMC | See User manual: https://support.flir.com/resources/4rur |
| Humidity [operating and storage] | Maximum 80% relative humidity, non-condensating |
| Operating Temperature Range | –35°C to 60°C (-31°F to 140°F) |
| Safety | See User manual: https://support.flir.com/resources/4rur |
| Shock | See User manual: https://support.flir.com/resources/4rur |
| Storage Temperature Range | -40°C to 80°C (-40°F to 176°F) To avoid possible damage during storage, ensure that the sensor is not exposed to air. Use a lens cap or lens to cover the sensor. |
| Tripod Mounting | UNC ¼″-20 |
| Vibration | See User manual: https://support.flir.com/resources/4rur |
| 電源 | |
|---|---|
| Power Consumption | 12 V: 2.8 W 24 V: 2.8 W PoE (48 V): 3.5 W |
Resources & Support
Datasheet
FLIR A38 A68 Datasheet
Datasheet
FLIR A38 A68 Datasheet GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
