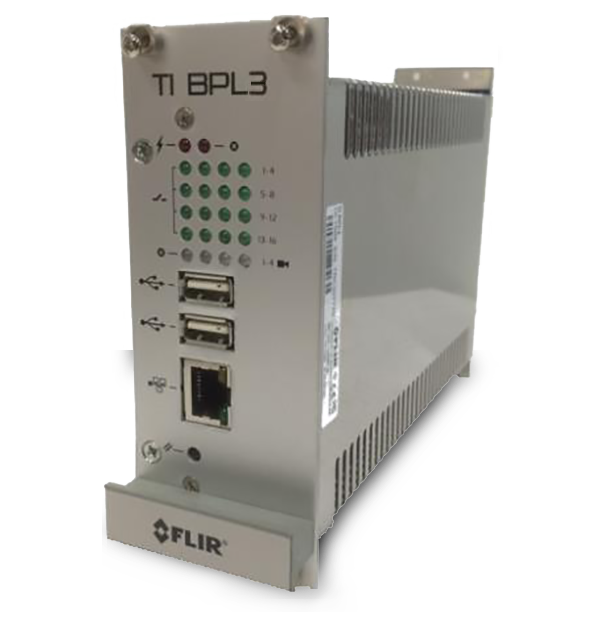

FLIR TI BPL3
3rd Generation Broadband Over Power Line Interface
Product Variations
This interface connects zone outputs from BPL3 sensors* and/or Power Line sensors to a controller, providing power and communications to BPL3 sensors and/or PL sensors. It also connects the PC to BPL3 sensors and/or PL sensors for system configuration and viewing
.*BPL3 Sensor(s): TrafiOne, ThermiCam AI, TrafiCam AI, TrafiSense AI, LaneCom T, LaneCom V
仕様
| システム概要 | |
|---|---|
| Error Output | 背面の端子コネクターを介して4×光結合ドライ接点N/OImax = 50 m A、Umax = 48 VDC1xインターフェースエラー 前面LED、4xBPL3またはPLセンサーステータスLED |
| Maximum Cameras | 標準1～4×BPL3またはPLセンサー最大4 × BPL3またはPLセンサー |
| 電気設備 | |
|---|---|
| Current Consumption | ≤130 mA @ 24 VDC |
| Input Voltage | TI BPL3 EURO：12～60 VDCまたは12～42 VAC TI BPL3 EDGE B&SIU：12～42 VDCまたは12～30 VAC |
| Power Consumption | ≤3 W |
| 環境 | |
|---|---|
| Operating Temperature Range | NEMA Ⅱ仕様：-40～74℃ |
| 機械設備 | |
|---|---|
| Weight | TI BPL3 EURO：570 g TI BPL3 EDGE B&SIU：750 g |
Resources & Support
Datasheet
Flir TI BPL3 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
