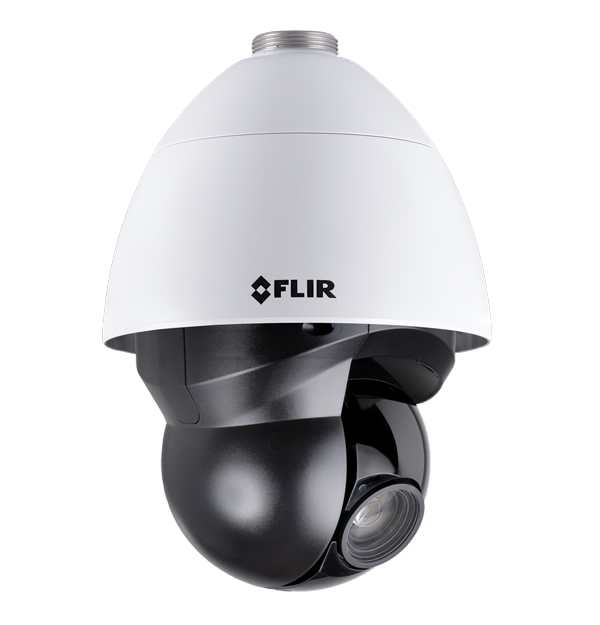

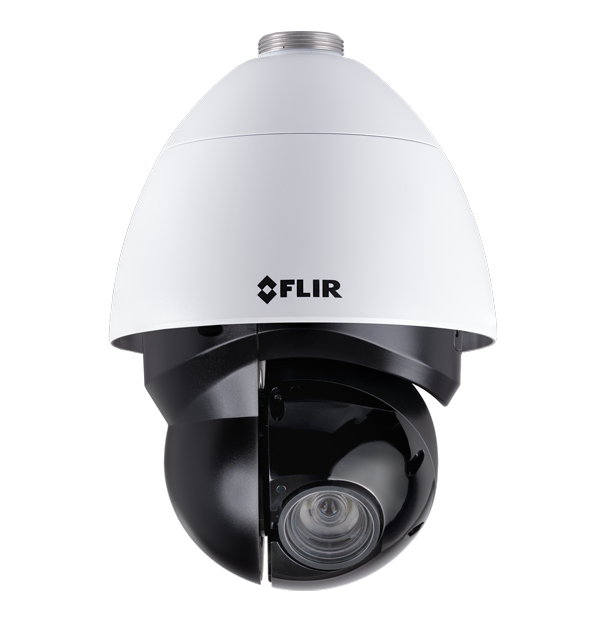

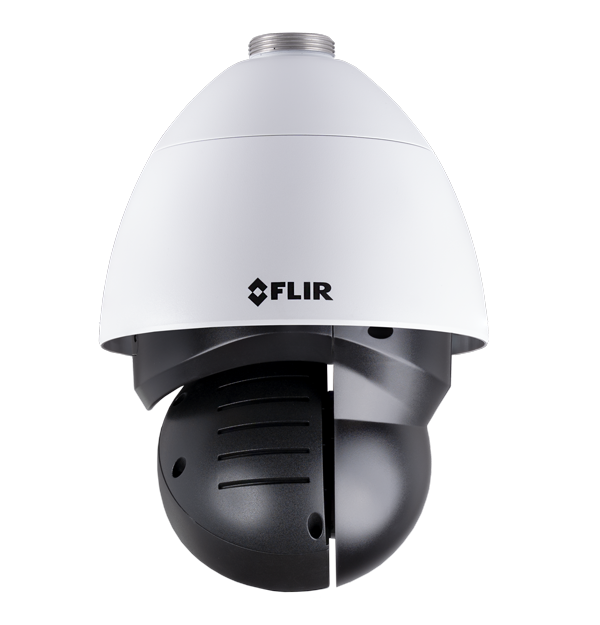

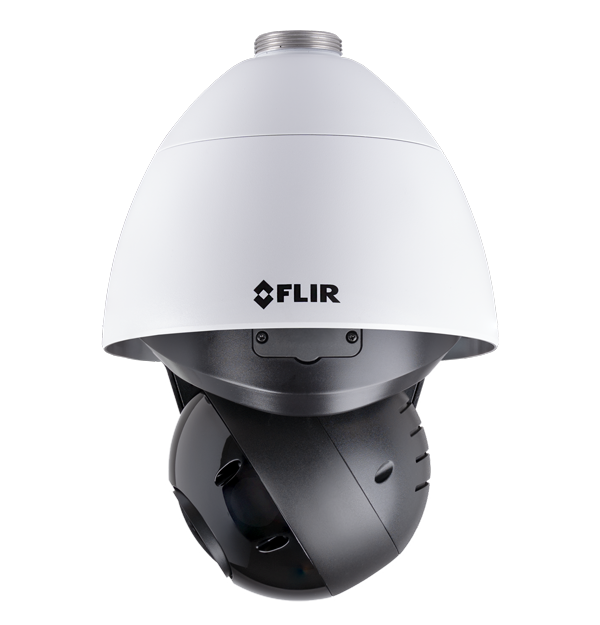

Quasar™プレミアム1080p IR PTZ
Premium 1080p IR PTZ 40x Zoom Camera With Edge AI
The Quasar CP-6402-41-IA 1080p IR PTZ camera combines powerful 40x optical zoom with crystal-clear full HD resolution, giving security teams the ability to monitor expansive areas and capture fine details from long distances. Designed for performance in low-light and nighttime conditions, its integrated infrared illumination ensures round-the-clock visibility. The camera employs Edge AI analytics to intelligently detect and classify people and vehicles in real time, enhancing situational awareness while reducing false alarms. Engineered for reliability in the toughest environments, this high-speed PTZ is ideal for safeguarding critical infrastructure, urban spaces, and perimeter security zones.
The Quasar CP-6402-41-IA delivers powerful long-range surveillance with an impressive 40x optical zoom, allowing operators to capture detailed images across vast distances. Whether you're monitoring large perimeters, city streets, or open industrial zones, this camera ensures that even the most distant objects remain in sharp focus, without compromising image quality.
Equipped with Edge AI analytics, the CP-6402-41-IA detects, tracks, and classifies people and vehicles in real time directly on the device. This smart processing reduces false alarms, improves event accuracy, and empowers security teams to respond faster and more effectively to potential threats.
With built-in infrared illumination and a robust design built to withstand harsh weather and environmental conditions, the CP-6402-41-IA provides 24/7 operational reliability. It's an ideal solution for outdoor surveillance in critical infrastructure, transportation hubs, and other demanding security applications where uptime and visibility are non-negotiable.
仕様
| Analytics | |
|---|---|
| Video Analytics | Abandoned object Intrusion detection Camera sabotage Wrong direction Loitering detection Object counting Object removal Stopped vehicle Face detection PTZ auto tracking |
| 適合性と認定 | |
|---|---|
| International | CE marked, EN 61000-6-3, EN 62368-1, EN 50130-4, CB 62368-1, LVD (CoC), RoHS, RCM, WEEE, ISTA-3A, BIS, UKCA/UKNI |
| ONVIF Compliance | Profiles S, G, M & T |
| USA | FCC Part 15 (subpart B, class A, ICES-003) |
| サイバーセキュリティ | |
|---|---|
| Security | Password protection IP address filtering TLS/HTTPS IEEE 802.1X network access control Digest authentication Password policy Protect from multiple failure login |
| 環境 | |
|---|---|
| De_Icing_Defogging | Yes |
| Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | -40°C to 60°C (-40°F to 140°F) with heater 10% to 90%, no condensation |
| Safety Cable | Yes |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| 一般仕様 | |
|---|---|
| Automatic Electronic Shutter [AES] | 1/1 to 1/32,000 |
| Compression | Enhanced H.265 Main Profile + Enhanced H.264 Main/ High/Baseline Profile + MJPEG |
| Day_Night Mode | Yes |
| Dimensions | 207 × 300 mm (8.15 × 11.81 in) with sunshield |
| Electronic stabilization | Yes |
| Enclosure Rating | IK10, IP66 |
| Firmware Upgrade | Flash memory for upgrade of camera firmware over the network |
| Input Voltage | PoE++ IEEE802.3bt, max 51.00 W AC 24 V, max 59.39 W, max 83.25 VA |
| Power Connection | RJ45, AC |
| Power Consumption | Max 59.39 W (including heaters, IR LEDs) |
| Privacy Zones | Yes |
| Scanning Mode | Progressive |
| Shutter WDR | 130 dB |
| Tamper Detection | Yes |
| Warranty | According to FLIR RMA Policy and Process Notice document |
| Weight | 3.8 kg (8.38 lb) |
| 測定解析 | |
|---|---|
| Analytics Management | Web-based configuration and management, adjustable sensitivity, automatic responses, remote I/O control |
| PTZ | |
|---|---|
| Auto Flip | Mechanical/Off |
| Home Function | Preset/Sequence/Auto Pan/Pattern |
| Horizontal Viewing Angles | Pan: 0°–360°, endless |
| Manual Speed | Pan: 0.1°–90°/s Tilt: 0.1°–55°/s |
| Pan_Tilt Travel | Pan: 0°–360° endless Tilt: -20°–100° |
| Power loss recovery | Yes |
| Preset Speed | Pan: 300°/s Tilt: 300°/s |
| Presets | 256.0 |
| Proportional Pan and Tilt | On/Off (pan and tilt speed proportional to zoom ratio) |
| Seq._Auto Pan_Pattern | 8/4/8 |
| システム統合 | |
|---|---|
| Bi_directional Audio | Audio in, terminal block, G.711/G.726/AAC/ LPCM, Audio out |
| Distance | Angle of illumination | Up to 200 m 6°/30°/90° |
| Ethernet | 10/100/1000, IEEE 802.3bt, auto-sensing 1 × RJ45 |
| Input | Alarm in × 4, 5 V with 10 KΩ pull up, 100 mA @ room temperature |
| LED Type | High efficiency SMD |
| Network Protocol | IPV4/6, HTTP, HTTPS, UPnP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, IEEE 802.1X, SNMP, QoS, TLS, SMTP, FTP, DDNS, PPPoE, RTCP, Syslog, LDAP |
| Output | Alarm out × 2, Terminal Block, 400 V DC/AC, 120 mA |
| Peak Emission Wavelength [nm] | 850 nm |
| Remote Configuration | Via web browser or supported video management software |
| Supported Web Browser | Firefox, Chrome, Edge, Safari |
| サーマルカメラ | |
|---|---|
| DSS | Default 1/4; options 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| Focus | Lidar fast focus |
| Image Sensor | 1/2.8” CMOS |
| Resolution | 1945 × 1097 (2 M) |
| Sensitivity | Color: 0.1 lux, B/W: 0.002 lux |
| 可視カメラ | |
|---|---|
| Backlight Compensation | On/Off in linear mode |
| Bandwidth | Configurable between 64 Kbps and 20 Mbps |
| DSS | Default 1/4; options 1/60, 1/30, 1/15, 1/8, 1/4, 1/2, 1/1 |
| Focus | Lidar fast focus |
| Image Sensor | 1/2.8” CMOS |
| Lens Type | 40x zoom lens, P-Iris, Auto-Iris, f/1.6, 4.3–170 mm |
| Mechanical IR Cut Filter | Yes |
| Noise Reduction | 3D/2D/Color NR |
| Resolution | 1945 × 1097 (2 M) |
| Sensitivity | Color: 0.1 lux, B/W: 0.002 lux |
| Signal to Noise Ratio | ±45 dB |
| White Balance | Auto/ATW/Manual/One Push |
| 動画と録画 | |
|---|---|
| Maximum Performance | Up to 4 individually configurable streams in H.265/H.264/MJPEG Configurable resolution/frame rate/bandwidth/LBR/ VBR/CBR in H.265/H.264 |
| Rate Control | LBR, CBR, VBR, MJPEG |
| Resolution Range | 320 × 480 to 1920 × 1080 @ 30 fps |
| SD Card Recording | microSD/microSDHC/microSDXC size up to 1 TB; file encryption |
| Video Motion Detection | Yes |
Resources & Support
注：ソフトウェアまたはファームウェアをダウンロードするには、ログインする必要があります。ログインするか、アカウントを作成します。
Software Download
FLIR DNA Software - Version 2.3.0.35
Selection Guide
FLIR Edge Devices Accessory Guide
Compatibility
FLIR Security Cameras & Encoders - Supported 3rd Party Platforms
User Manual
FLIR Quasar Premium 1080p Pendant PTZ Installation & User Guide
Datasheet
FLIR Quasar Premium 1080p IR PTZ Datasheet
