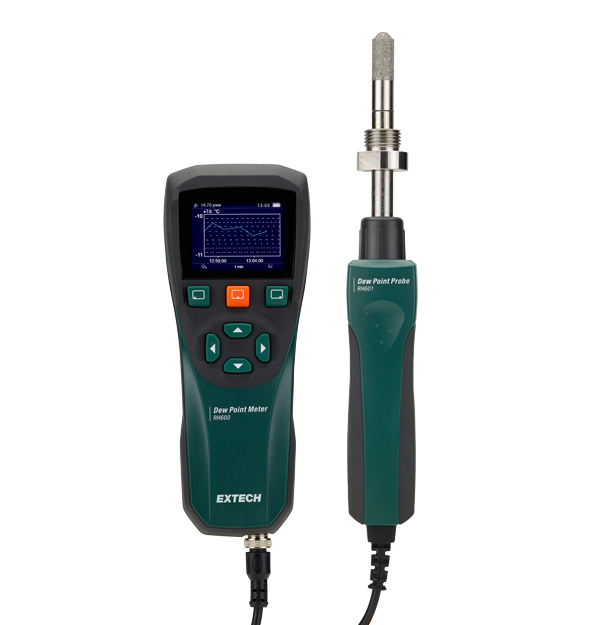

RH600
露点計
Extech RH600は、圧縮空気システムの露点レベルを正確に測定し、データログを作成します。この高精度メーターは、製造の専門家が製品の品質を保守しながら、損傷した空気圧機器、腐食、およびシリンダーやバルブシステムの問題を回避するのに役立ちます。カラーグラフィックディスプレイを備えたRH600は、明瞭で安定した読み取り値を提供し、最大周囲圧力20 barで-50°Cまでの露点温度を測定できます。温度、相対湿度、露点のしきい値に対して、高低の可聴および可視アラームを設定します。また、取得したデータを簡単に記録してCSV形式でPCに転送し、検査レポートを迅速に作成することもできます。
仕様
| 一般仕様 | |
|---|---|
| Dew Point | Range:
-40°C to 30°C (-40°F to 86°F),
Basic Accuracy:
±3.6°F (±2°C)
Range: -50°C to -40°C (-58°F to -40°F), Basic Accuracy: ±4.5°F (±2.5°) Max Resolution: 0.01° |
| Dimensions & Weight | 192 mm × 77 mm × 40 mm (7.5 in × 3.0 in × 1.6 in), 598 g (21.1 oz) |
| Relative Humidity | Range:
15 to 100% RH,
Basic Accuracy:
±2% RH + 3% of reading
Range: 5 to 15% RH, Basic Accuracy: ±1% RH + 5% of reading Range: 0 to 5% RH, Basic Accuracy: ±0.025% RH +17.5% of reading Max Resolution: .01% RH |
| Response Time | At flow rate 0.2 m/s, 1 bar pressure, 63% RH [90% RH] 0°C to 40°C Td (32°F to -40°F Td): 20 s [120 s] 40°C to 0°C Td (-40°F to 32°F Td): 10 s [20 s] |
| Temperature | Range:
-10℃ to 60℃ (14℉ to 140℉) Max Resolution: 0.01° Basic Accuracy: ±0.3℃ (±0.54°F) |
| Water Concentration | Range: 40 to 20,000 ppm
Max Resolution: 1 Basic Accuracy: ±(7.3 ppm + 8.3% of rdg) |
| 追加の詳細 | |
|---|---|
| Data Logging | 32,000 data sets with time stamps |
| Operating Conditions | -10°C to 60°C (14°F to 140°F), Pressure: 0 to 20 bar Accuracy at environment temperature: 16°C to 25°C (60.8°F to 77°F) |
| Power | 3.7 V rechargeable Li-ion battery (included) |
