Extech 341350A-P
Oyster™ Series pH/Conductivity/TDS/ORP/Salinity Meter

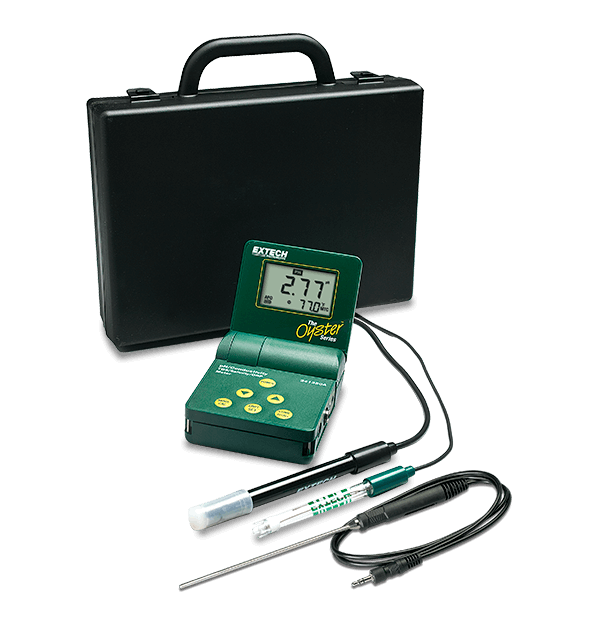

The Extech 341350A-P is an Oyster™ Series pH/Conductivity/TDS/ORP/Salinity Meter with a large LCD built into the adjustable flip-up cover, which is ideal for lab or field use. The microprocessor is based with splash proof housing and a front panel tactile touch pad for slope and calibration adjustments. The memory stores and recalls up to 25 readings. Featuring automatic temperature compensation (ATC) for Conductivity/TDS and manual temperature Compensation for pH. Complete with pH electrode, sample buffers, polymer conductivity cell, thermistor probe, 9 V battery, neck strap, and a carrying case.
사양
| 일반 사양 | |
|---|---|
| ORP | -1500mV to 1500mV |
| ORP 기본 정확도 | ±3mV |
| ORP 최대 해상도 | 1mV |
| pH | 0.01 to 14.00pH |
| pH 기본 정확도 | ±0.02pH |
| pH 최대 해상도 | 0.01pH |
| TDS | 10 to 19,990ppm (mg/L) |
| TDS 기본 정확도 | ±2%FS |
| TDS 최대 해상도 | 0.1ppm |
| 염도 | 0 to 10.00ppt |
| 염도 기본 정확도 | ±2%FS |
| 염도 최대 해상도 | 0.01ppt |
| 온도(접촉) | Thermistor probe: 32 to 194°F (0 to 90.0°C) |
| 온도(접촉) 기본 정확도 | ±2% |
| 온도(접촉) 최대 해상도 | 0.1mS |
| 전도성 | 10 to 19,990µS/cm |
| 전도성 기본 정확도 | ±2% |
| 전도성 최대 해상도 | 0.1µS |
| 추가 정보 | |
|---|---|
| 무게 | 12oz (340g) |
| 보증 | 2 years |
| 인증 | CE, NIST |
| 전원 | 1 × 9V battery |
| 크기 | 3.7 × 4.2 × 2" (96 × 108 × 45mm) |
리소스 및 지원
Certification
Extech 341350A Declaration of Conformity
Datasheet
Extech 341350A-P Datasheet
User Manual
Extech Oyster Meter 341350 341350-P User Manual
User Manual
Extech Oyster Meter 341350-A User Manual
