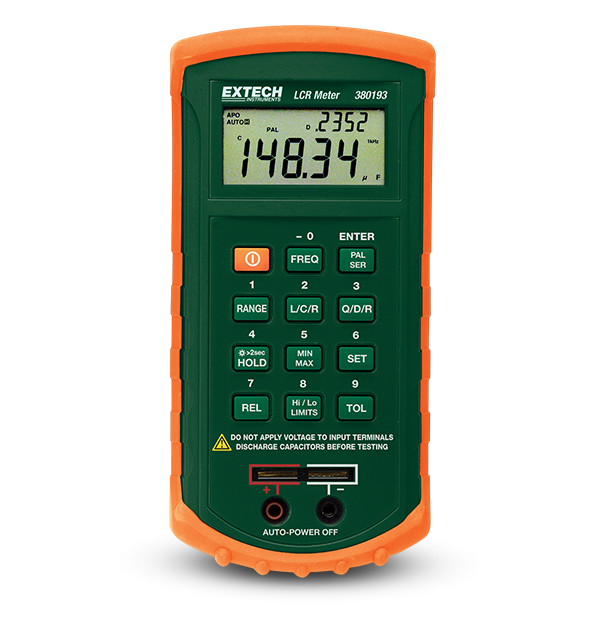

Extech 380193
Passive Component LCR Meter
The Extech 380193 is a Passive Component LCR Meter which measures inductance, capacitance, and resistance, with secondary parameters of quality, disperation, or resistance. Set Hi/Lo limits using absolute values or percentage limits. Allows for automatic blown fuse indication.
사양
| 일반 사양 | |
|---|---|
| 열방산 상수(DF) | 0 to 0.9999 |
| 열방산 상수(DF) 기본 정확도 | ±(0.7% of reading) |
| 인덕턴스 | 2000.0µH, 20.000mH, 200.00mH, 2000.0mH, 20.000H, 200.00H, 2000.0H, 10000H |
| 인덕턴스 기본 정확도 | ±(0.7% of reading) |
| 저항 | 20.000Ω, 200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ |
| 커패시턴스 | 2000.0pF, 20.000nF, 200.00nF, 2000.0nF, 20.000µF, 200.00µF, 2000.0µF |
| 테스트 주파수 | 120Hz and 1kHz |
| 품질 계수(Q) | 0 to 9999 |
| 품질 계수(Q) 기본 정확도 | ±(1.2% of reading) |
| 추가 정보 | |
|---|---|
| 무게 | 12.87oz (365g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 7.56 × 3.58 × 2.1" (192 × 91 × 53mm) |
