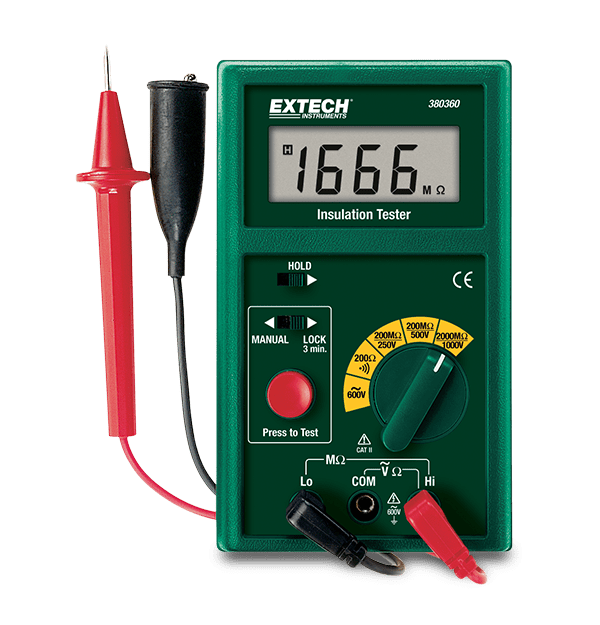

Extech 380360
Digital Megohmmeter
The Extech 380360 is a 1000 V Megohmmeter with an automatic 3 minute test. It has three test voltages of 250 V, 500 V and 1000 V, plus insulation resistance up to 2000 MΩ. Automatic discharge when the safety "Press to Test" button is released. Complete with 6 AA batteries, heavy duty 0.8 m (2.5 ft) test leads, alligator clip, large probe, and case with neck strap.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 600V |
| AC 전압 기본 정확도 | 0.8% of reading + 3 digits |
| 과부하 보호 | 2200V (< 1 min) |
| 연속성 | <100Ω |
| 저저항 | 200Ω |
| 저저항 기본 정확도 | 1% of reading |
| 저항 | 20/200Ω |
| 절연 저항 | 200M, 2000MΩ |
| 절연 저항 기본 정확도 | <1000MΩ (3% of reading + 5 digits), >1000MΩ (5% of reading + 5 digits) |
| 절연 테스트 전압 | 250V, 500V, 1000V |
| 출력 단락 전류 | 1.5 mA 0.3-0.5 mA |
| 추가 정보 | |
|---|---|
| 디스플레이 | Segment LCD |
| 무게 | 13oz (369g) |
| 보증 | 2 years |
| 안전 범주 | CAT II-600V |
| 인증 | CE |
| 전원 | 6 × AA (1.5V) batteries |
| 크기 | 3.8 × 6.3 × 2.3" (97 × 160 × 58mm) |
리소스 및 지원
Datasheet
Extech 380360 Datasheet
User Manual
Extech 380360 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
