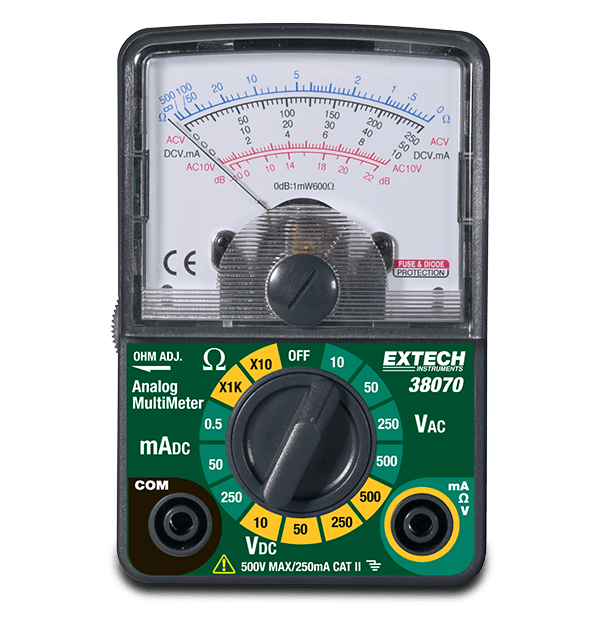

Extech 38070
Compact Analog MultiMeter
Extech’s 38070 Compact Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size and detachable leads. This compact and affordable multimeter is equipped with measurement capabilities that are ideal for the hobbyist, handyman, electronics tinkerer, or DIYer. Use this meter to perform basic troubleshooting on anything connected to an outlet. Analog meters like this one are also useful for illustrating adjustments made to a circuit between relative high and low settings. Includes test leads, one AA battery, and a user manual.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 10V, 50V, 250V, 500V |
| AC 전압 기본 정확도 | ±4% full scale |
| DC 전류 | 0.5mA, 50mA, 250mA |
| DC 전류 기본 정확도 | ±4% full scale |
| DC 전압 | 10V, 50V, 250V, 500V |
| DC 전압 기본 정확도 | ±4% full scale |
| 데시벨 | -10 to 56dB (0dB, 1mW, 600Ω) |
| 저항 | 10kΩ, 1MΩ |
| 추가 정보 | |
|---|---|
| 디스플레이 | Analog |
| 무게 | 3.88oz (110g) |
| 보증 | 2 years |
| 안전 범주 | CAT II-500V |
| 인증 | CE, UL |
| 전원 | 1 × AA (1.5V) battery |
| 크기 | 3.82 × 3.34 × 1.3" (97 × 65 × 33mm) |
리소스 및 지원
User Manual
Extech 38070 User Manual
Datasheet
Extech 38070 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
