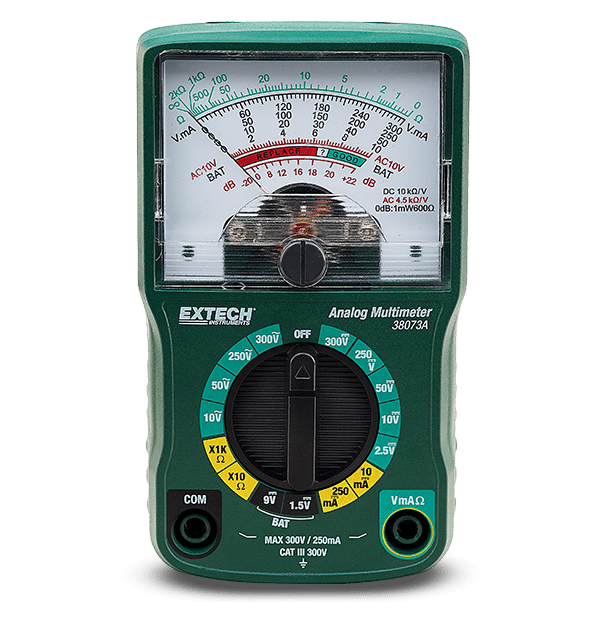

Extech 38073A
Mini Analog MultiMeter
Extech’s 38073A Mini Analog MultiMeter offers the testing advantages of an analog meter with a pocket-friendly size. This compact multimeter is equipped with measurement capabilities that are perfect for a electrical hobbyist, electronics tinkerer, home DIYer, and shadetree mechanic. It offers 6 functions and includes test leads plus an easy to read, color coded analog display. Useful for illustrating adjustments made to a circuit between relative high and low settings, this meter can be used to perform basic troubleshooting on anything connected to an outlet. Complete with test leads and a 1.5 V AA battery.
사양
| 일반 사양 | |
|---|---|
| AC 전압 | 10V, 50V, 250V, 300V |
| AC 전압 기본 정확도 | ±5% full scale |
| DC 전류 | 10mA, 250mA |
| DC 전류 기본 정확도 | ±4% full scale |
| DC 전압 | 2.5V, 10V, 50V, 250V, 300V |
| DC 전압 기본 정확도 | ±4% full scale |
| 데시벨 | -20 to 22dB (0dB: 1mW, 600Ω) |
| 배터리 테스트 | 9V and 1.5V |
| 저항 | 10Ω, 1kΩ |
| 추가 정보 | |
|---|---|
| 무게 | 4.2oz (120g) |
| 보증 | 2 years |
| 안전 범주 | CAT III-300V |
| 인증 | CE,ETL |
| 전원 | 1 × 9V battery |
| 크기 | 4.6 × 2.7 × 1.3" (116 × 68 × 34mm) |
