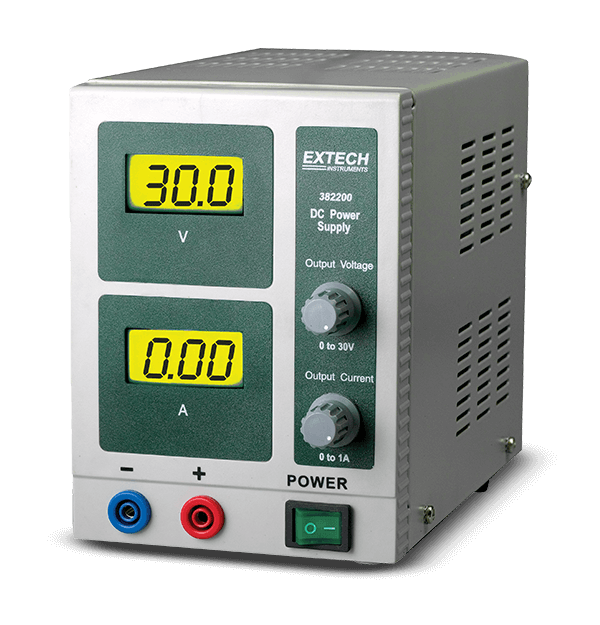

Extech 382200
30V/1A 단일 출력 DC 전원 공급 장치
듀얼 LCD가 장착된 정전압/전류 디지털 DC 전원 공급 장치
사양
| 일반 사양 | |
|---|---|
| Line Current Regulation | <0.2% + 3mA |
| Line Voltage Regulation | <0.01% + 3mV |
| Load Current Regulation | <0.2% + 3mA |
| Load Voltage Regulation | <0.01% + 2mV |
| Output Current | 0 - 1.00A DC |
| Output Current Basic Accuracy | ±판독값의 2% |
| Output Voltage | 30.0V DC |
| Output Voltage Basic Accuracy | 판독값의 ±1.5% |
| Ripple and Noise | <0.5mV/<3mA |
| 추가 정보 | |
|---|---|
| Dimensions | 240 × 108 × 154mm |
| Power | 115V/230V; 50/60Hz |
| Warranty | 2년 |
| Weight | 2kg |
Resources & Support
Certification
Extech 382200 Declaration of Conformity
User Manual
Extech 382200 382202 User Manual
Datasheet
Extech 382200-382202 Datasheet
