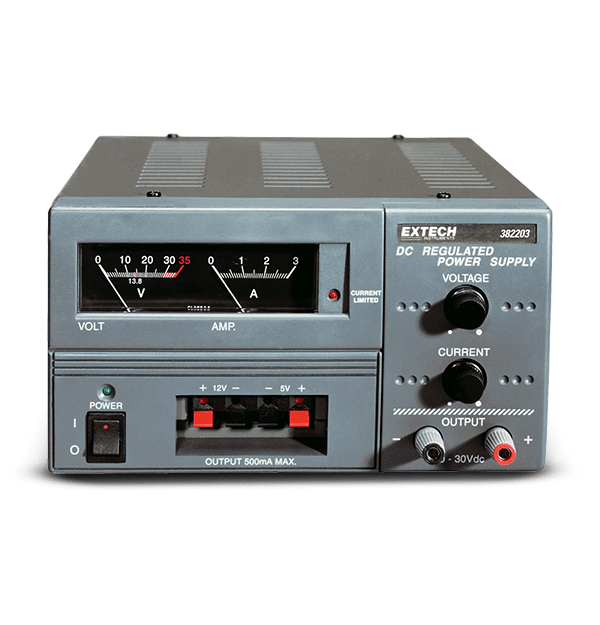

Extech 382203
Analog Triple Output DC Power Supply
The Extech 382203 is an Analog Triple Output DC Power Supply with overload and short circuit protection. Featuring constant voltage and current supply, the 382203 has a current limiting, front panel, LED indicator and binding post terminals for variable supply. Complete with power cord.
사양
| 일반 사양 | |
|---|---|
| 고정 출력 | 5V/0.5A (cont.), 1A(max); 12V/0.5A (cont.), 1A(max) |
| 라인 전압 조정 | <0.05%+10mV |
| 리플 및 노이즈 | <5mV |
| 부하 전압 조정 | <0.05%+10mV |
| 출력 전류 | 0 to 3A DC |
| 출력 전압 | 0 to 30V DC |
| 추가 정보 | |
|---|---|
| 무게 | 11lbs. (5kg) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 110/220VAC 50/60Hz |
| 크기 | 6 × 5.6 × 9.5" (152 ×142 × 242) |
리소스 및 지원
User Manual
Extech 382203 382213 User Manual
Datasheet
Extech 382203-382213 Datasheet
