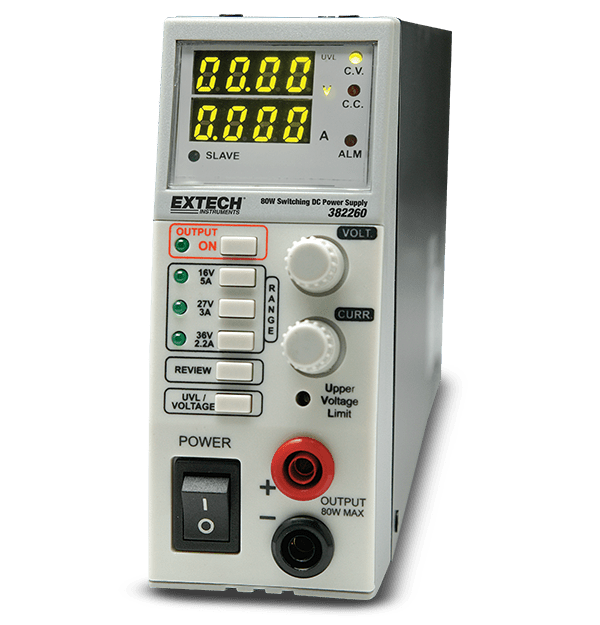

Extech 382260
80W Switching Mode DC Power Supply
Extech’s 382260 is an 80 W Switching Mode DC Power Supply. Its has three selectable output ranges that perform like three power supplies in one: 0 V to 16 V (0 A to 5 A), 0 V to 27 V (0 A to 3 A), and 0 V to 36 V (0 A to 2.2 A). This compact and lightweight unit provides easy portability and is ideal for tight workbenches with limited space. The 382260 features 4-Digit LED displays, front and rear output terminals, and remote sensing for accurate applied voltage at load point. Complete with AC Power cord.
사양
| 일반 사양 | |
|---|---|
| 라인 전압 조정 | <4mV |
| 리플 및 노이즈 | <30mVpp |
| 부하 전압 조정 | <20mV |
| 출력 전류 | 0.100 to 5.100A, 0.100 to 3.100A, 0.100 to 2.300A |
| 출력 전류 기본 정확도 | ±1% |
| 출력 전압 | 0.10 to 16.40V, 0.10 to 27.60V, 0.10 to 36.80V |
| 출력 전압 기본 정확도 | ±1% |
| 추가 정보 | |
|---|---|
| 무게 | 4.2lbs (1.9kg) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 90-264VAC; 47-63Hz |
| 크기 | 13 × 5 × 2" (330 × 127 × 53.5mm) |
리소스 및 지원
User Manual
Extech 382260 User Manual GB
Datasheet
Extech 382260 Datasheet
