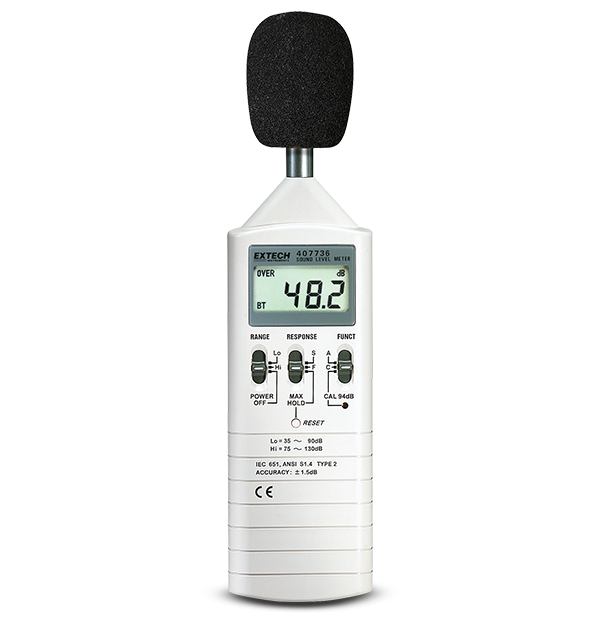

Extech 407736
Dual Range Sound Level Meter
The Extech 407736 Dual Range Sound Level Meter measures from 35 dB to 130 dB ±1.5 dB, and it meets both ANSI and IEC Type 2 standards. It features a fast and slow response time, A/C weighting, max hold function, and an analog AC/DC output for connection to an analyzer or recorder. Comes complete with microphone wind screen, 9 V battery, and carrying case.
사양
| 일반 사양 | |
|---|---|
| 가중치 | A,C |
| 마이크 | Condenser, 0.5” (12.7mm) |
| 사운드 범위(dB) | Low: 35 to 90dB; High: 75 to 130dB |
| 사운드 범위(dB) 기본 정확도 | ±1.5dB (Type 2) |
| 사운드 범위(dB) 최대 해상도 | 0.1dB |
| 아날로그 출력 | AC/DC |
| 응답 시간 | Fast/Slow |
| 추가 정보 | |
|---|---|
| 무게 | 7.6oz (215g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 9.5 × 2.7 × 1" (241 × 69 × 25mm) |
리소스 및 지원
User Manual
Extech 407736 User Manual GB
Certification
Extech 407736 Declaration of Conformity
Datasheet
Extech 407735 407736 Datasheet
