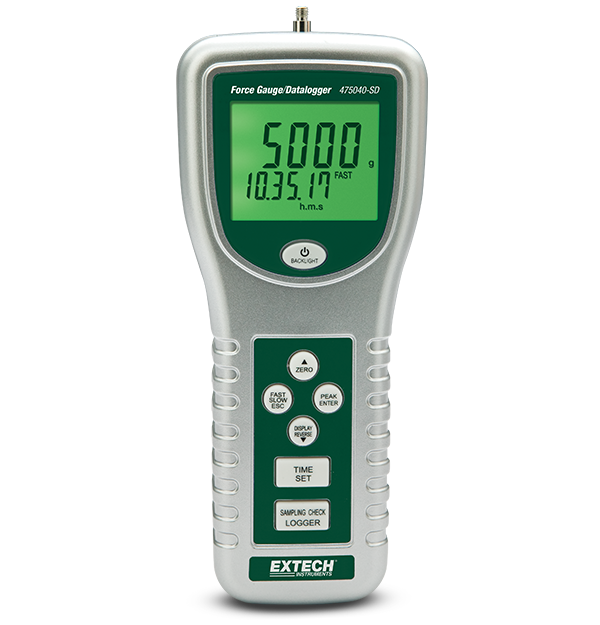

Extech 475040-SD
Digital Force Gauge/Datalogger
The Extech 475040-SD Digital Force Gauge/Datalogger dates, time stamps, and stores up to 2 M of push/pull readings on an SD card in Excel format for easy transfer to a PC. Featuring a 5 digit LCD display with peak hold, exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. It has 5 kg/176 oz/49 Newtons measurement capacity with 0.5% basic accuracy and auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel, and hook for tension), and 6 AA batteries.
사양
| 일반 사양 | |
|---|---|
| 과부하 용량 | 10kg |
| 메모리 | SD Card |
| 물리력 | 176oz, 5000g, 49 Newtons |
| 물리력 기본 정확도 | ±(0.4%) |
| 물리력 최대 해상도 | 0.05oz, 1g, 0.01 Newtons |
| 변환기 유형 | Load cell |
| 업데이트 속도 | Fast mode 0.2secs; Slow mode 0.6secs |
| 전체 스케일 감지 | 2.00mm |
| 추가 정보 | |
|---|---|
| 무게 | 1.4 lbs (650g) |
| 보증 | 2years |
| 인증 | CE |
| 전원 | 6 × AA batteries |
| 크기 | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
리소스 및 지원
Datasheet
Extech 475040-SD-475044-SD Datasheet
User Manual
Extech 475040-SD475044-SD User Manual GB
Certification
Extech 475040-SD Declaration of Conformity
User Manual
Extech 475040 475044 User Manual GB
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
