Extech 475044-SD
High Capacity Force Gauge/Datalogger

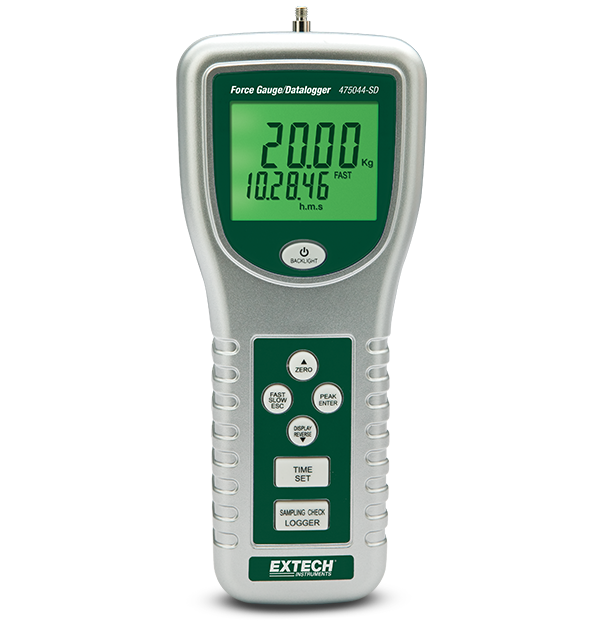

The Extech 475044-SD Digital Force Gauge/Datalogger dates, time stamps and stores up to 2 M push/pull readings on an SD card in Excel format for easy transfer to a PC. It features a 5 digit LCD display with peak hold, an exclusive load cell measurement transducer, and an overrange, low battery, and advanced function indicator. 20 kg/44 lbs/196 Newtons measurement capacity. 0.5% basic accuracy with auto power off. Complete with SD card, tension rod, carrying case and 4 adapters (flathead, cone, chisel and hook for tension), and 6 AA batteries.
사양
| 일반 사양 | |
|---|---|
| 과부하 용량 | 30kg |
| 메모리 | SD Card |
| 물리력 | 44lbs, 20kg, 196 Newtons |
| 물리력 기본 정확도 | ±(0.5%) |
| 물리력 최대 해상도 | 0.01lbs, 0.01kg, 0.05 Newtons |
| 변환기 유형 | Load cell |
| 업데이트 속도 | Fast mode 0.2secs; Slow mode 0.6secs |
| 전체 스케일 감지 | 2.00mm |
| 추가 정보 | |
|---|---|
| 무게 | 1.4 lbs (650g) |
| 보증 | 2 years |
| 인증 | CE, NIST |
| 전원 | 6 × AA batteries |
| 크기 | 8.5 × 3.5 × 1.8" (215 × 90 × 45mm) |
리소스 및 지원
Certification
Extech 475044-SD Declaration of Conformity
Datasheet
Extech 475040-SD-475044-SD Datasheet
User Manual
Extech 475040-SD475044-SD User Manual GB
