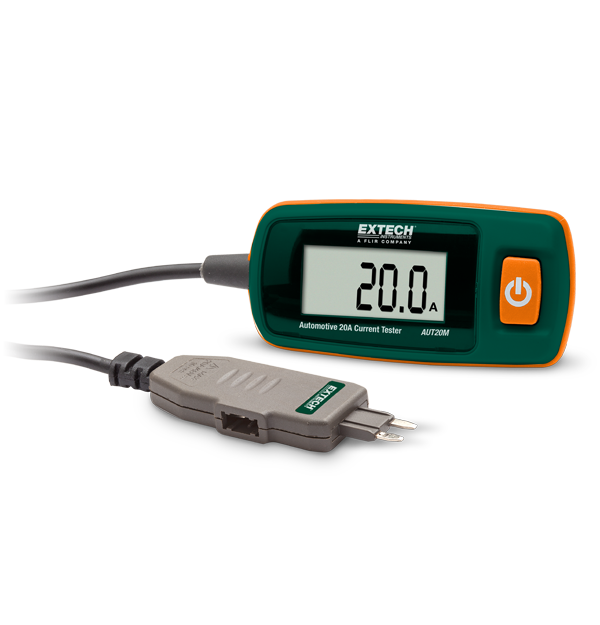

Extech AUT20M
20A Current Tester
Check up to 20 Amps without breaking the circuit with the Extech AUT20M Current Tester. Mini-blade connectors plug into the fuse block. It has a measuring range of 20 Amps/48 VDC (10 seconds max) with 10 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
사양
| 일반 사양 | |
|---|---|
| DC 전류 | 0 to 20A DC |
| DC 전류 기본 정확도 | ±(2.0% of reading + 2 digits) |
| DC 전류 최대 해상도 | 10mA |
| DC 전압 | 48V DC |
| 감지 거리 | <0.2" |
| 케이블 길이 | 71cm (2.3 ft.) |
| 추가 정보 | |
|---|---|
| 무게 | 42g (1.5oz) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × A23G (12V) battery |
| 크기 | 159 × 25mm (6.25 × 1") |
리소스 및 지원
User Manual
Extech AUT20 AUT20M User Manual GB
Certification
Extech AUT20M Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
