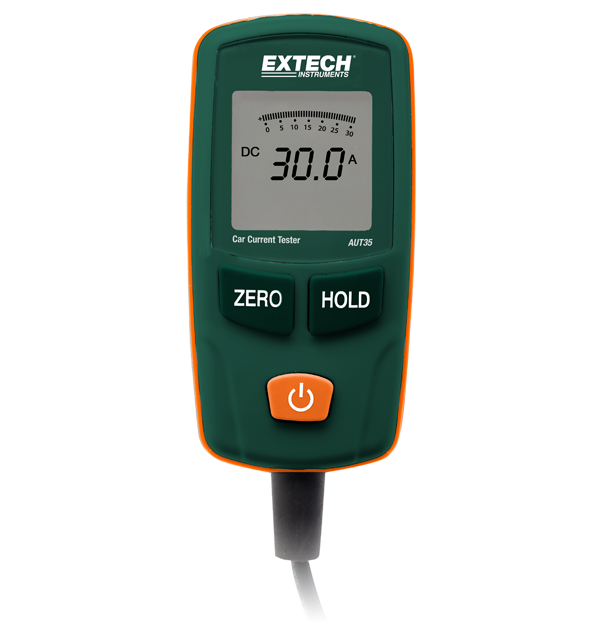

Extech AUT35
Universal 30A Current Tester
Check up to 30 Amps without breaking the circuit with the Extech AUT35 Current Tester. Mini-blade and ATC blade connectors plug into the fuse block. It has a measuring range of 30 Amps/48 VDC (10 seconds max) with 100 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD with a bargraph. Includes alligator clips.
사양
| 일반 사양 | |
|---|---|
| DC 전류 | 0 to 30A DC |
| DC 전류 기본 정확도 | 100mA |
| DC 전류 최대 해상도 | ±(2.0% of reading + 2 digits) |
| DC 전압 | 48V DC |
| 감지 거리 | <0.2" |
| 추가 정보 | |
|---|---|
| 무게 | 68g (0.15 lbs.) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 86 × 37 × 28mm (3.4 × 1.5 × 1.1") |
리소스 및 지원
Certification
Extech AUT35 Declaration of Conformity
Datasheet
Extech AUTxx Datasheet
User Manual
Extech AUT35 User Manual GB
