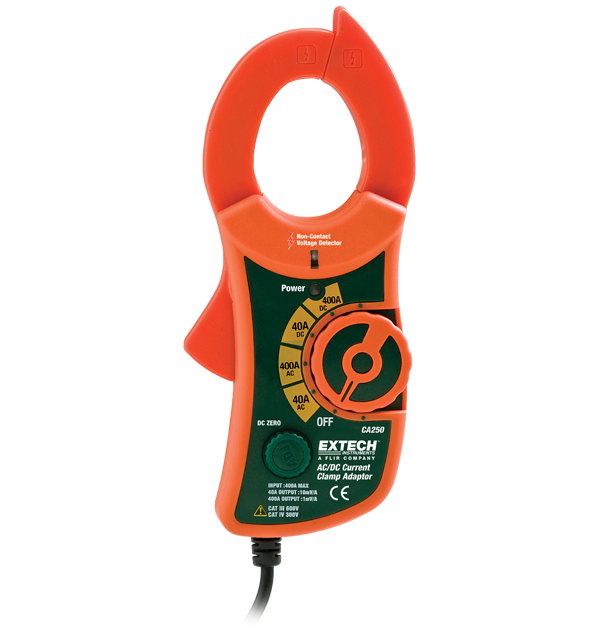

Extech CA250
400A AC/DC Clamp-on Adaptor + NCV
The Extech CA250 is a 400 A AC/DC Clamp-on Adaptor with built in NCV that can be used with any multimeter with a 1 mV input and accepts standard banana plugs. It has a 30 mm (1.2 in) clamp jaw and 2.5% accuracy. Additional features include a built in, non-contact voltage detector with LED alerts and a DC zero adjust. Comes complete with built in 1.1 m (3.8 ft) cable with banana plugs and two AAA batteries.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| AC 전류 기본 정확도 | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| DC 전류 | 0 to 40A (10mV per Amp output); 0 to 400A (1mV per Amp output) |
| DC 전류 기본 정확도 | ±(2.5% of rerading + 0.1A) at 0 to 40A; ±(2.8% of reading + 0.5A) at 0 to 400A |
| 주파수 | 50/60Hz |
| 턱 크기 | 30mm (1.2") |
| 추가 정보 | |
|---|---|
| 무게 | 8oz (226g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V, CATIV - 300V |
| 인증 | CE |
| 전원 | 2 × AAA (1.5V) batteries |
| 크기 | 5.8 × 2.3 × 1.3" (146 × 60 × 32mm) |
리소스 및 지원
Datasheet
Extech CA250 Datasheet
User Manual
Extech CA250 User Manual GB
Certification
Extech CA250 Declaration of Conformity
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
