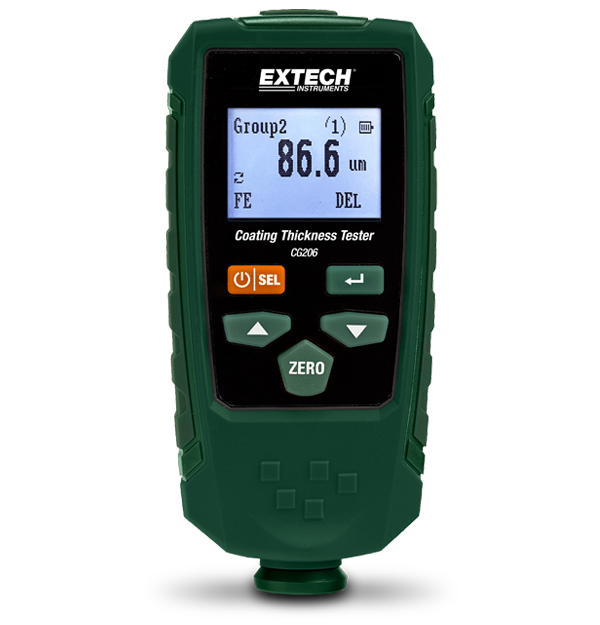

Extech CG206

코팅 두께 검사기

이중 기술을 통해 재료를 추측할 필요 없이 철 및 비철 기판을 자동으로 인식합니다. 다양한 표면에서 코팅 두께를 비파괴적으로 한 손으로 신속하게 측정할 수 있습니다.

사양

일반 사양
Coating Thickness [Ferrous] 0 ~ 1350µm
Coating Thickness [Ferrous] Basic Accuracy ±2.5%
Coating Thickness [Ferrous] Max Resolution 0.1µm
Coating Thickness [Non_Ferrous] 0 ~ 1350µm
Coating Thickness [Non_Ferrous] Basic Accuracy ±2.5%
Coating Thickness [Non_Ferrous] Max Resolution 0.1µm
Min Curvature Radius [Ferrous] 1.5mm
Min Curvature Radius [Non_Ferrous] 3mm
Min Diameter [Ferrous] 7mm
Min Diameter [Non_Ferrous] 5mm
Min Thickness [Ferrous] 0.5mm
Min Thickness [Non_Ferrous] 0.3mm
Working Principle [Ferrous] 자기 유도
Working Principle [Non_Ferrous] 와전류
추가 정보
Certifications CE
Dimensions 113.5 × 54 × 27mm
Power AAA(1.5V) 배터리 2개
Warranty 2년
Weight 110g
