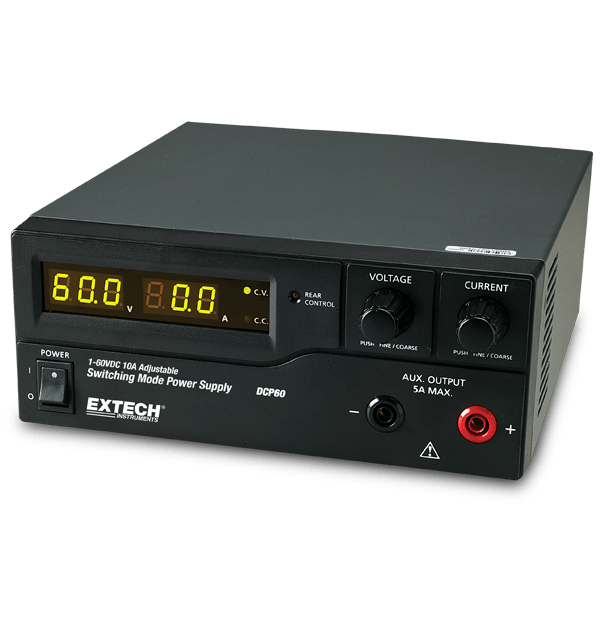

Extech DCP60
600W Switching Power Supply (120V)
The highly efficient Extech DCP60 incorporates upgraded SMPS circuitry with small form factor, benefits from an automatic cross over for CC and CV, has three voltage/current presets, and can be controlled remotely. The DCP60 is perfect for solving a variety of loading conditions and applications. With the 60 V/10 A output, the maximum current can be limited to 5 A using the auxiliary output on the front panel (10 A main output is available on the back panel). The DCP60 also provides dual action rotary encoder control with a push knob for fine and coarse tuning. It enables the quick setting of voltage, current, and three user-defined voltage and current presets. The USB port is avaliable for programming and running ramp and soak cycles with 20 programmable sets of voltage/current and varying test durations (up to 999 cycles). Complete with power cords.
사양
| 일반 사양 | |
|---|---|
| 라인 전류 조정 | 50mA |
| 라인 전압 조정 | 20mV |
| 리플 및 노이즈 | ≤5m Vrms, ≤100m Vp-p |
| 부하 전류 조정 | 100mA |
| 부하 전압 조정 | 50mV |
| 출력 전류 | 1 to 10A |
| 출력 전류 기본 정확도 | ±(0.2% of reading + 3 digits) |
| 출력 전압 | 1 to 60V |
| 출력 전압 기본 정확도 | ±(0.2% of reading + 3 digits) |
| 추가 정보 | |
|---|---|
| 무게 | 5.7lbs (2.6kgs) |
| 보증 | 2 years |
| 인증 | CE |
| 크기 | 7.9 × 3.5 × 8.5" (200 × 90 × 215mm) |
리소스 및 지원
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech DCP42 DCP60 Software
User Manual
Extech DCP60 User Manual
Datasheet
Extech DCP60 Datasheet
Certification
Extech DCP60 Declaration of Conformity
