단종

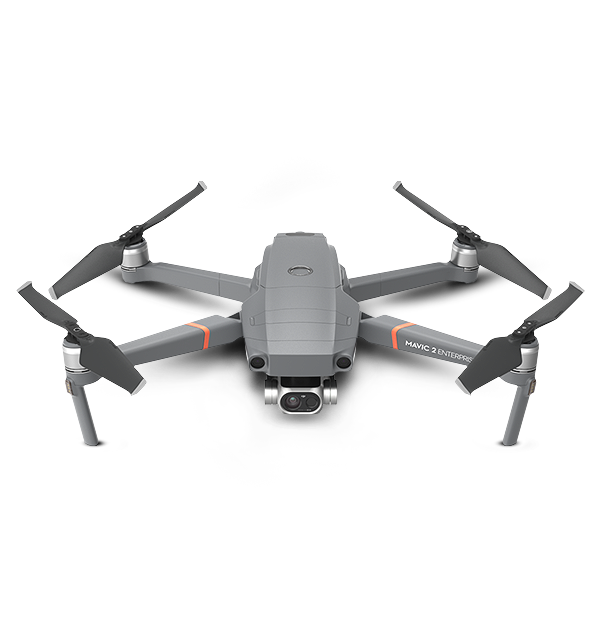

DJI Mavic 2 Enterprise Dual

UAS Thermal Imaging Kit

Designed to empower a new generation of workers, the Mavic 2 Enterprise DUAL with thermal imaging is the ultimate expression of a tool that delivers beyond expectation to meet current workplace challenges and future demands. It combines gimbal technology, mobile app integration, and video transmission to provide reliable aerial thermal imaging to a wide range of industries.

An Aerial View is More Accessible than Ever Before
The Mavic Dual with FLIR thermal serves as an eye in the sky for first responders and building inspectors - while using >1 ft² of space
See invisible differences in heat like no one else, so you can find lost people and animals, inspect buildings for moisture intrusion, find hidden roof damage, and much more.
Visualize scenarios in realtime with FLIR MSX®, monitor and measure objects with the thermal spot meter, and take area measurements - all so you can make the most informed decisions.

사양

이미징 및 광학
HFOV, 열화상 57°
가시적 사진/영상 형식 Photo: JPEG/DNG (Raw) Video: MP4, MOV (MPEG-4 AVC/H.264, HEVC/H.264)
열화상 기기 Uncooled microbolometer, 8–14 µm
열화상 사진/영상 형식 Photo: JPEGs Video: MP4, MOV (MPEG-4 AVC/H.264 Radiometric file save not supported)
적외선 카메라 FLIR Lepton, 160 × 120
짐벌 마운트 [적외선 및 실화상] Fixed mount
프레임률_열화상 9 Hz
해상도, 열화상 160 × 120 native resolution
화면 범위 [로우 게인 (low gain)] -10°C to 400°C (14°F to 752°F)
화면 범위 [하이 게인 (high gain)] -10°C to 140°C (14°F to 284°F)
통신 및 데이터 저장 공간
파일 저장 Supports microSD up to 128 GB (UHS-1 Speed Grade 3 required)
전력
항공기용 배터리 3850 mAh, 15.4 V LiPo 4S
일반
무게 [배터리 포함] 1.1 kg
항공기 모델 DJI Mavic 2 Dual
액세서리
RC 유닛 1개 포함 DJI Mavic remote
포함 태블릿 인터페이스 NA

리소스 및 지원

User Manual

Mavic 2 Enterprise Series User Manual

다운로드

User Manual

Mavic 2 Enterprise Series In The Box

다운로드

Export Restrictions

The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
