단종

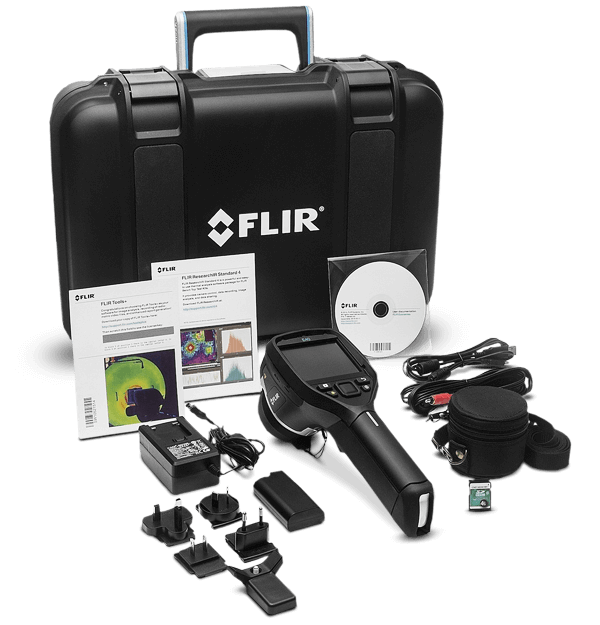

FLIR E40sc Test Kit
Benchtop Thermal Camera
The FLIR E40sc Benchtop Test Kit is the perfect choice when you need a flexible, handheld camera for engineering or science lab use. The E40sc offers longwave imaging with thousands of temperature measurement points across your target, for more reliable and comprehensive results than with a thermocouple or spot pyrometer. Together with the kit’s lens choices and analysis software, the E40sc kit is the most dependable temperature measurement solution for industrial and R&D labs.
Advanced Benchtop Thermal Testing
Non-contact measurements down to 50 µm spotsize and across 19,200 (160 x 120) pixels eliminates the guesswork of finding hot spots.
With accuracy of ±2% and a thermal sensitivity/NETD of <70 mK, the E40sc offers spot-on detection of fine thermal variations.
Stream data directly to a computer via USB, or use Wi-Fi to upload recorded images to the FLIR Tools app.
사양
| 강조 표시됨 | |
|---|---|
| 해상도 | 160×120 |
| 감도 | <0.07°C @ +30°C / 70 mK |
| 작동 온도 범위 | -20°C to 650°C 0°C to 650°C |
| 이미징 및 광학 | |
|---|---|
| PC로 디지털 데이터 스트리밍 | via USB |
| 감도 | <0.07°C @ +30°C / 70 mK |
| 내장 디지털 카메라 | 3.1 MPixel |
| 온-카메라 분석 | Center spot Hot spot Cold Spot 3 Spots Difference temperature [two versions] |
| 최소 스팟 크기 | 1.1mm |
| 해상도 | 160×120 |
| 측정 및 분석 | |
|---|---|
| 시간 vs 온도 측정표 | Yes |
| 작동 온도 범위 | -20°C to 650°C 0°C to 650°C |
| 정확도 | ±2°C or ±2% of reading |
| 일반 | |
|---|---|
| 리서치 적외선 소프트웨어 포함 | Yes |
액세서리
리소스 및 지원
Warranty
FLIR Global Uncooled Thermal Camera 2-10 Limited Warranty
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
