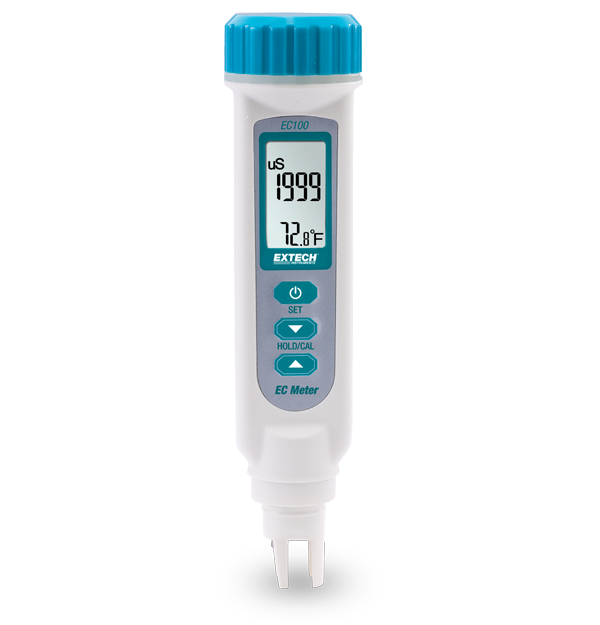

Extech EC100
Conductivity/Temperature Meter
The Extech EC100 is a waterproof (meets IP65 standard) Conductivity/Temperature Meter with a high-accuracy multi-ranging sensor. Features an auto power off with disable. Units of measure include µS/cm, mS/cm, ppm, and ppt. Featuring adjustable automatic temperature compensation, the EC100 includes a protective sensor cap and four LR44 button batteries. Conductivity standards sold separately (required for calibration).
사양
| 일반 사양 | |
|---|---|
| 온도(접촉) | 32° to 122°F (0 to 50°C) |
| 온도(접촉) 기본 정확도 | ±0.9°F/1°C |
| 온도(접촉) 최대 해상도 | 0.1°F/°C |
| 전도성 | 0 to 1999µS/cm, 00 to 19.99mS/cm |
| 전도성 기본 정확도 | ±1% full scale |
| 전도성 최대 해상도 | 1µS/cm, 0.01mS/cm |
| 추가 정보 | |
|---|---|
| IP등급 | IP65 |
| 무게 | 3.8oz (110g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 4 × LR44 (1.5V) batteries |
| 크기 | 6.5 × 1.4 × 1.3" (165 × 35 × 32mm) |
리소스 및 지원
User Manual
Extech EC100 User Manual
Certification
Extech EC100 Declaration of Conformity
Datasheet
Extech EC100 EC150 Datasheet
