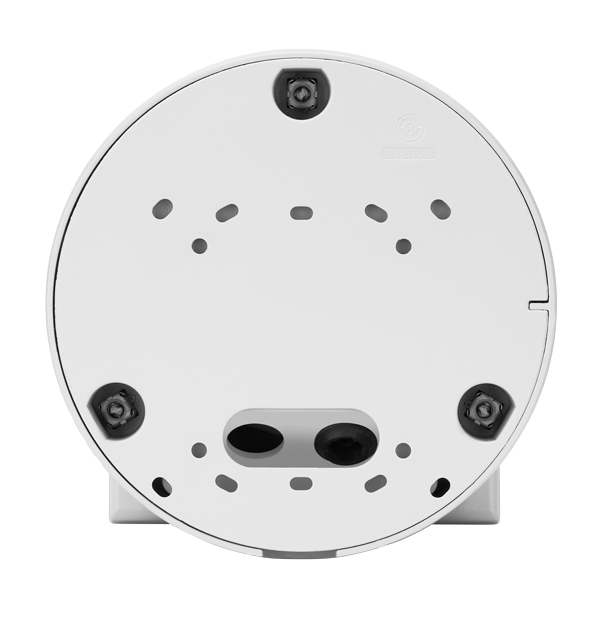

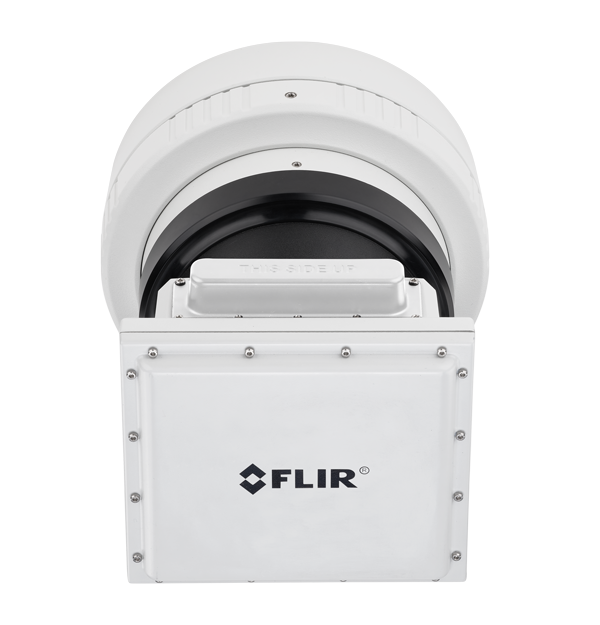

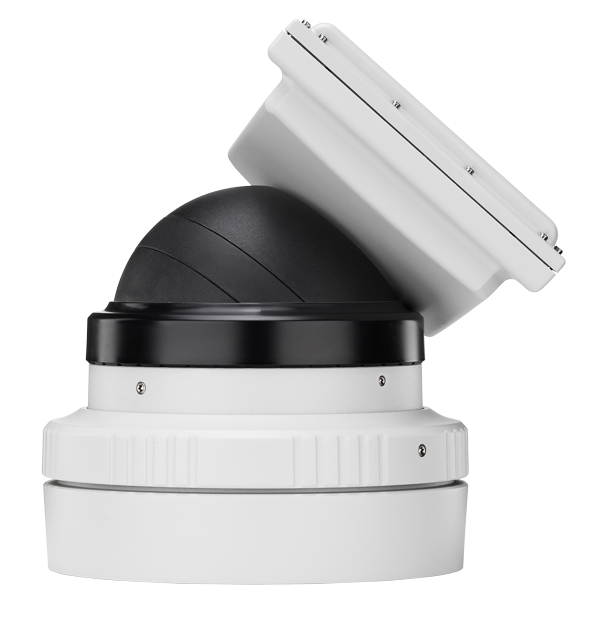

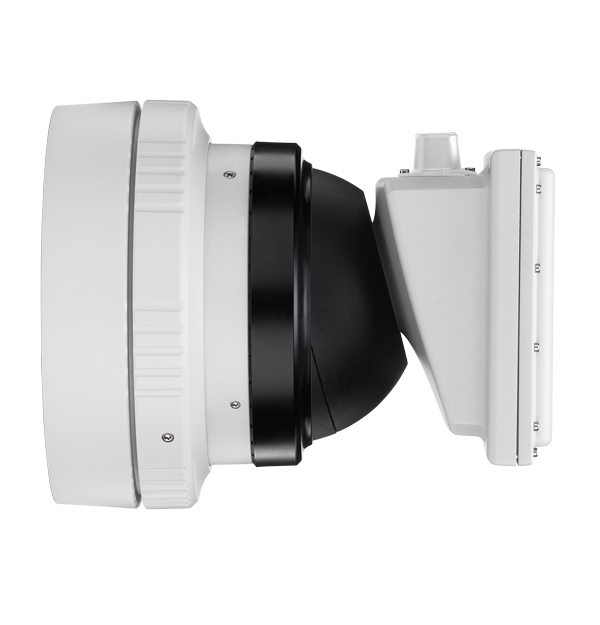

FLIR Elara™ R-290

Commercial Ground Radar

The FLIR Elara R-290 is a compact ground radar used to detect and provide early warning of intruders as part of a larger video surveillance system. Radars can track targets in all weather and lighting conditions and dynamically map them in real time for position intelligence. The Elara R-290 features a 90-degree field of view and up to 400-meter range for vehicle tracking and 200-meter range for human tracking, providing wide-area protection and situational awareness beyond the fence line. With simultaneous tracking of up to 32 targets and geolocation capability, the Elara R-290 can activate alarms and guide PTZ cameras for visual verification to maximize security coverage and increase the amount of time available to react to a threat.

Receive advanced warning of intrusions beyond the fence line. Scan field of view up to 10 times per second for fast target detection and smooth tracking of humans and vehicles.
최대 32개의 표적을 동시에 지속적으로 추적하고 정확하게 찾아 모든 환경 또는 기상 조건에서 위협을 신속하게 차단합니다.
정밀한 정확도와 완벽한 제어를 위해 레이더 대상 추적 정보를 비디오 관리 시스템(VMS)과 통합합니다.

사양

환경
IP Rating IP66
Operating Temperature -40°C to 70°C
일반
Input Voltage 12V DC, 24V AC, and POE+
I_Os RJ45 Ethernet, 10-pin Terminal Block
Power Consumption 7.5W
Protocols AXML, ONVIF, FLIR Nexus SDK, FLIR Nexus CGI
RF Transmit Power 14dBm (0.025W)
Weight 5.1lbs (2.3kg)
측정 및 분석
Angular Accuracy 0.6m
Coverage Area 7.6 acres / 30,000m2 (Human Detection)
Frequency Range 24.075-24.175GHz
Human Detection Range 200m
Min Target Detection Speed 0.2m/s
Radar Targets Max 32
Range Resolution 1.5m
Target Information GPS 좌표, 속도, RCS, 범위, 방위각/방향, 제목, 코스/트랙, 대상 ID
Vehicle Detection Range 400m
