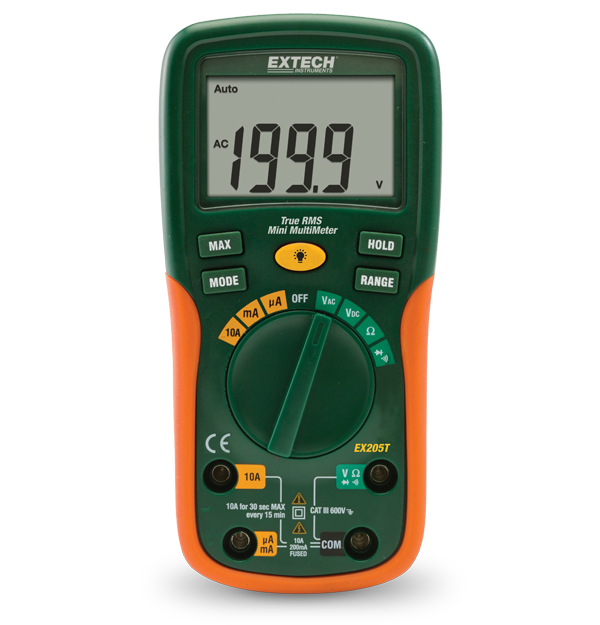

Extech EX205T
TrueRMS Digital Multimeter
The Extech EX205T is a True RMS Digital Multimeter which provides true AC readings when measuring distorted or non-sinusoidal waveforms plus noisy signals. This model is also auto ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. Featuring a large 2000 count, backlit dual LCD with easy to read digits, this multimeter measures AC/DC voltage, resistance, diode test, and continuity. The meter also makes use of a number of functions including input fuse protection, max hold, auto power off, and data hold functions. Product includes test leads and 9 V battery.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 10A |
| AC 전류 최대 해상도 | 0.1µA |
| AC 전압 | 600V |
| AC 전압 최대 해상도 | 0.1mV |
| DC 전류 | 10A |
| DC 전류 최대 해상도 | 0.1µA |
| DC 전압 | 600V |
| DC 전압 기본 정확도 | ±0.5% |
| DC 전압 최대 해상도 | 0.1mV |
| 다이오드 검사 | Yes |
| 연속성 | Yes |
| 저항 | 20MΩ |
| 저항 최대 해상도 | 0.1Ω |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 9.17oz (260g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
리소스 및 지원
User Manual
Extech EX205T User Manual
Certification
Extech EX205T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
