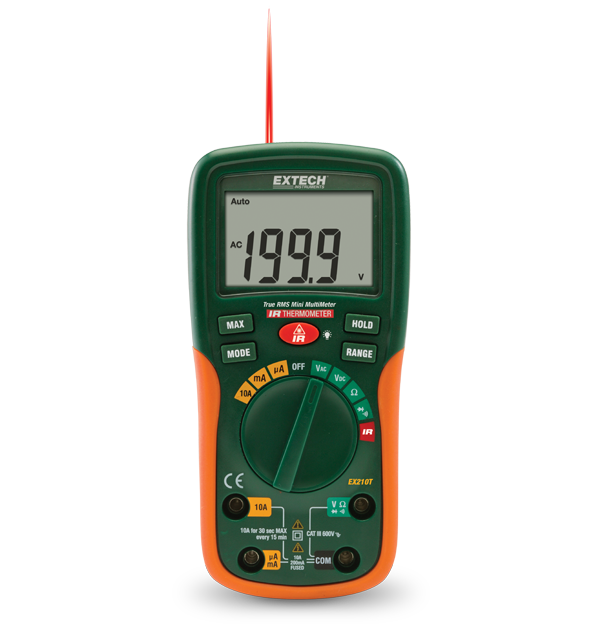

Extech EX210T
TrueRMS Digital Multimeter with IR
The Extech EX210T is a TrueRMS Digital Multimeter with IR. The meter auto ranges and has a 2000 count large LCD display. It measures AC/DC voltage and current, resistance, and temperature (IR). Its True RMS measurements make this meter more accurate and reliable when measuring distorted waveforms, and its built in IR thermometer has a 4:1 distance to target ratio, visually aided by the built in laser pointer. This meter has a CAT III 600 V safety rating and is complete with a year warranty, test leads, and a 9 V battery.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 10A |
| AC 전류 최대 해상도 | 0.1µA |
| AC 전압 | 600V |
| AC 전압 최대 해상도 | 0.1mV |
| DC 전류 | 10A |
| DC 전류 최대 해상도 | 0.1µA |
| DC 전압 | 600V |
| DC 전압 기본 정확도 | ±0.5% |
| DC 전압 최대 해상도 | 0.1mV |
| 다이오드 검사 | Yes |
| 연속성 | Yes |
| 온도(RTD) | 0.1°F/°C |
| 온도(접촉) 기본 정확도 | -5 to 446 °F (-20 to 230 °C) |
| 저항 | 20MΩ |
| 저항 최대 해상도 | 0.1Ω |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 9.17oz (260g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, ETL |
| 전원 | 1 × 9V battery |
| 크기 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
리소스 및 지원
User Manual
Extech EX210 EX210T User Manual
Certification
Extech EX210T Declaration of Conformity
Datasheet
Extech EX205T EX210T Datasheet
