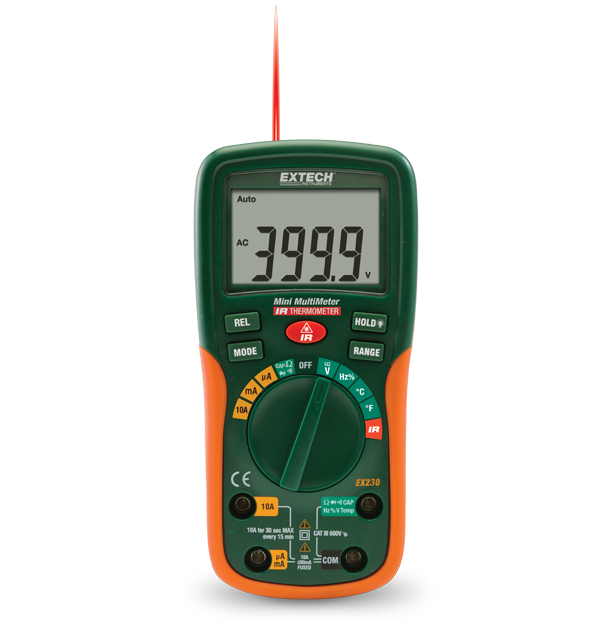

Extech EX230
12 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. The EX230’s rugged design incorporates a 4000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. The built in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K temperature, frequency, capacitance, and duty cycle measurement. It also has relative function, data hold capabilities, and an auto power off function. The EX230 comes complete with test leads, Type K Temperature bead probe, and a 9 V battery.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1µA to 10A |
| AC 전압 | 0.1mV to 600V |
| DC 전류 | 0.1µA to 10A |
| DC 전압 | 0.1mV to 600V |
| DC 전압 기본 정확도 | ±0.5% |
| 다이오드 검사 | Yes |
| 사용률 | 0.1% to 99.9% |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1400°F (-20 to 760°C) |
| 온도(접촉) 기본 정확도 | -5 to 446°F (-20 to 230°C) |
| 저항 | 0.1Ω to 40MΩ |
| 주파수 | 0.001Hz to 10MHz |
| 커패시턴스 | 0.01nF to 100µF |
| 추가 정보 | |
|---|---|
| 디스플레이 | 4000-count segment LCD |
| 무게 | 9.17oz (260g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
리소스 및 지원
Datasheet
Extech EX230 Datasheet
User Manual
Extech EX230 User Manual
Certification
Extech EX230 Declaration of Conformity
