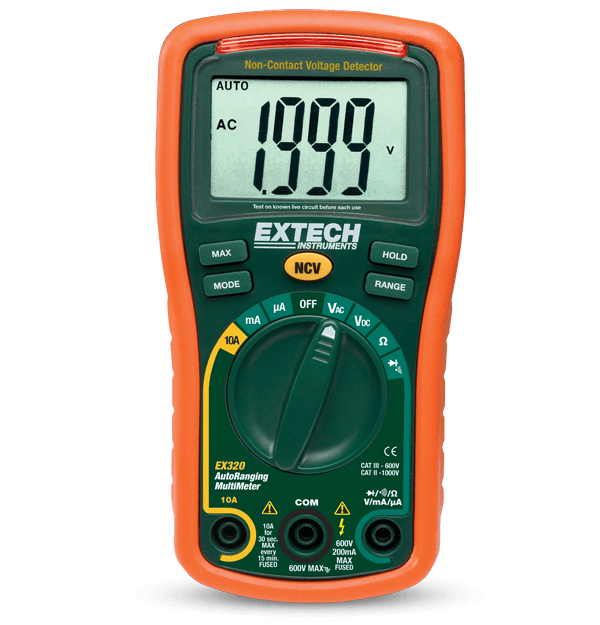

Extech EX320
8 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX320, a compact auto ranging multimeter, features extra large 2000 count display and a built in, non-contact AC Voltage detector. Its large LCD display can display continuity, diode test, and max hold functions, as well as AC/DC voltage/current and resistance measurements. A rubber holster protects the meter. UL listed Cat III – 600 Volt. Includes test leads, two AA batteries, and a tilt stand.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1µA to 10A |
| AC 전압 | 0.1mV to 600V |
| DC 전류 | 0.1µA to 10A |
| DC 전압 | 0.1mV to 600V |
| 다이오드 검사 | Yes |
| 비접촉 전압(NCV) 감지기 | 100 to 600VAC |
| 연속성 | Yes |
| 저항 | 0.1Ω to 20MΩ |
| 추가 정보 | |
|---|---|
| 디스플레이 | 2000-count segment LCD |
| 무게 | 9oz (260g) |
| 보증 | 2 years |
| 안전 범주 | CATII - 1000V, CATIII - 600V |
| 인증 | CE, UL, NIST |
| 전원 | 2 × AAA (1.5V) batteries |
| 크기 | 5.7 × 2.9 × 1.6" (147 × 76 × 42mm) |
리소스 및 지원
User Manual
Extech EX320 User Manual
Certification
Extech EX320 Declaration of Conformity
Datasheet
Extech EX3xx Datasheet
