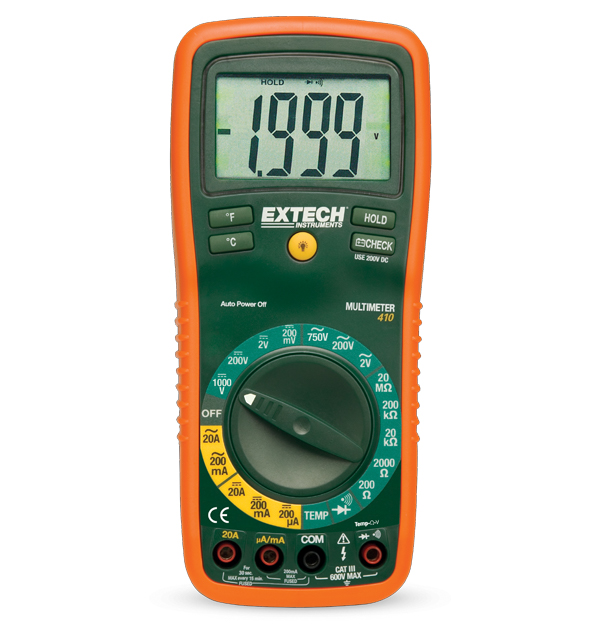

Extech EX410
8 Function Professional MultiMeter
Compact and powerful, the Extech EX410 8 Function true RMS Professional MultiMeter provides the versatility of multiple meters in one convenient device. The EX410 measures AC/DC voltage and current, resistance, diode, and temperance. A large, backlit display and 2.5 cm (1 in) high digits allow for easy reading, while the ergonomically designed housing offers comfortable, one-handed operation. Comes with the multimeter, CAT III test leads, stand, hanging strap, holster with built-in test lead storage, Type K bead wire temperature probe, and one 9 V battery.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1µA to 20A |
| AC 전압 | 1mV to 750V |
| DC 전류 | 0.1µA to 20A |
| DC 전압 | 0.1mV to 1000V |
| DC 전압 기본 정확도 | ±0.5% |
| 다이오드 검사 | Yes |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1382°F (-20 to 750°C) |
| 저항 | 0.1Ω to 20MΩ |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 0.75lbs (342g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V, CATIV - 1000V |
| 인증 | UL |
| 전원 | 1 × 9V battery |
| 크기 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
리소스 및 지원
User Manual
Extech EX410 User Manual
Datasheet
Extech EX4xx Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
