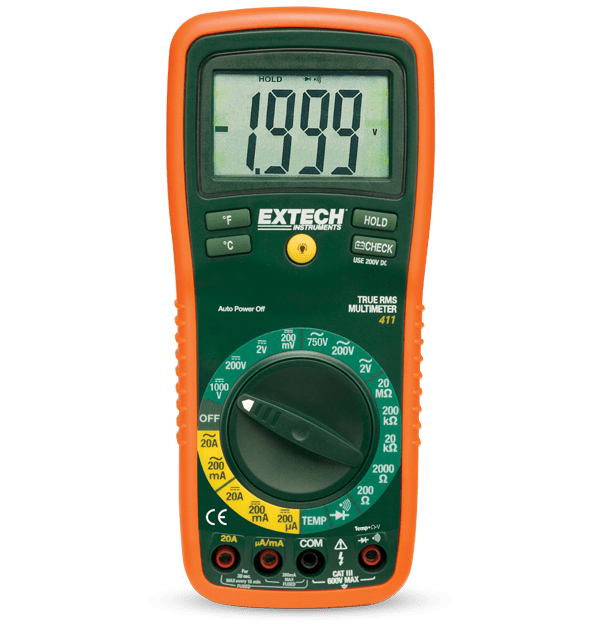

Extech EX411
8 Function True RMS Professional MultiMeter
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1mA to 20A |
| AC 전류 기본 정확도 | ±0.5% |
| AC 전압 | 1mV to 750V |
| AC 전압 기본 정확도 | ±0.5% |
| DC 전류 | 0.1µA to 20A |
| DC 전류 기본 정확도 | ±0.5% |
| DC 전압 | 0.1mV to 1000V |
| DC 전압 기본 정확도 | ±0.3% |
| 다이오드 검사 | Yes |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1382 °F (-20 to 750 °C) |
| 저항 | 0.1Ω to 20MΩ |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 0.75lbs (342g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V, CATIV - 1000V |
| 인증 | UL |
| 전원 | 1 × 9V battery |
| 크기 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
리소스 및 지원
User Manual
Extech EX411 User Manual
Datasheet
Extech EX4xx Datasheet
