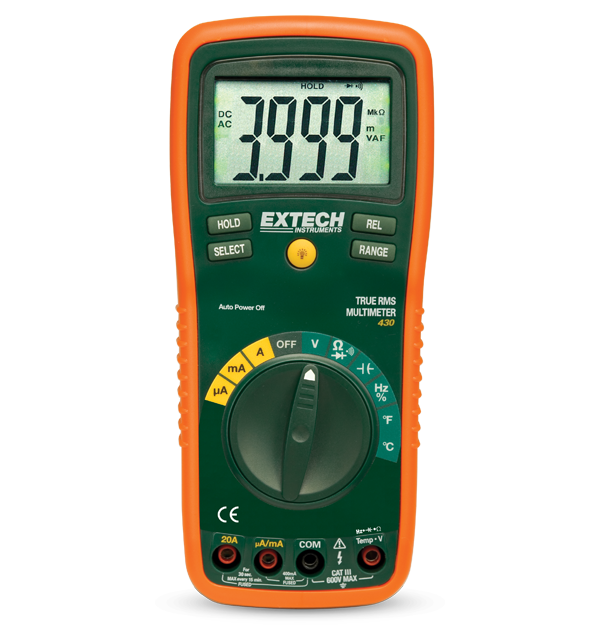

Extech EX430
11 Function True RMS Professional MultiMeter
The Extech EX430 True RMS Autoranging Multimeter is a professional grade, True RMS Multimeter capable of performing a wide range of measurements. Functions include AC/DC voltage to 600 V, AC/DC current to 20 A, resistance to 40 M, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. The meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and velcro hanging strap.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1µA to 20A |
| AC 전압 | 0.1mV to 750V |
| DC 전류 | 0.1µA to 20A |
| DC 전압 | 0.1mV to 1000V |
| DC 전압 기본 정확도 | ±0.3% |
| 다이오드 검사 | Yes |
| 사용률 | 0.1% to 99.9% |
| 연속성 | Yes |
| 온도(K형) 최대 해상도 | -4 to 1382°F (-20 to 750°C) |
| 저항 | 0.1Ω to 40MΩ |
| 주파수 | 0.001Hz to 10MHz |
| 커패시턴스 | 0.01nF to 100µF |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 0.75lbs (342g) |
| 보증 | 3 years |
| 안전 범주 | CATIII - 600V, CATIV - 1000V |
| 인증 | UL |
| 전원 | 1 × 9V battery |
| 크기 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
리소스 및 지원
User Manual
Extech EX430 User Manual
Datasheet
Extech EX4xx Datasheet
