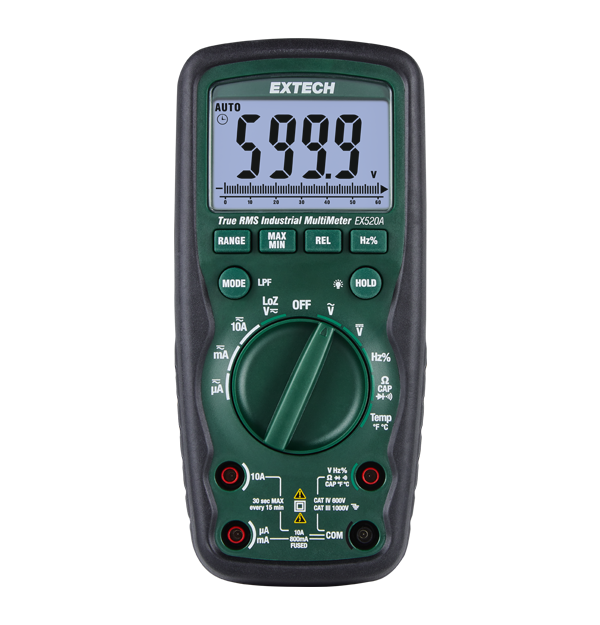

Extech EX520A
Heavy Duty True RMS Industrial Multimeter
The EX520A heavy duty true RMS industrial multimeter measures AC/DC voltage, current, resistance, capacitance, dual sensitivity frequency (electric 1 kHz/electronic 10 MHz), type K thermocouple -45°C to 760°C (-50°F to 1400°F), and bead wire temperature probe -20°C to 250°C (-4°F to 482°F). It features a 6000 count backlit LCD screen, 0.09% basic accuracy, relative/data hold, and auto an auto power function. With a CAT IV-600 V safety rating and an IP67 rating for water and dust resistance, the EX520A is an ideal tool for electricians, HVAC technicians and benchtop technicians who require accuracy, durability, and safety in their electrical testing equipment.
• IP67 rating for protection against water and dust
• 2 m (6.5 ft) drop proof
• Double-molded test leads included
• 최대 1000V AC V/DC V + AC A, DC A, 저항, 용량, 주파수, 듀티 사이클, 온도, 다이오드 및 연속성 측정
• Low Impedance Mode (LoZ) to reduce false readings caused by ghost voltages
• 20 A max current
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1µA~10A |
| AC 전압 | 1mV~1000V |
| DC 전류 | 0.1µA~10A |
| DC 전압 | 0.1mV~1000V |
| 사용률 | 0.1~99.9% |
| 연속성 | 예 |
| 온도(K형) 최대 해상도 | -45°C~760°C |
| 저항 | 0.1Ω~40MΩ |
| 주파수 | 전기: 0.001Hz~10MHz, 전자: 0.01Hz~1kHz |
| 커패시턴스 | 0.01nF~99.99mF |
| 트루 RMS | 예 |
| 추가 정보 | |
|---|---|
| IP등급 | IP67 |
| 디스플레이 | 6000 카운트 세그먼트 LCD |
| 무게 | 375g |
| 보증 | 3년 |
| 안전 범주 | CAT IV-600V |
| 인증 | CE, UL |
| 전원 | 9V 배터리 1개 |
| 크기 | 183mm × 83mm × 55mm |
