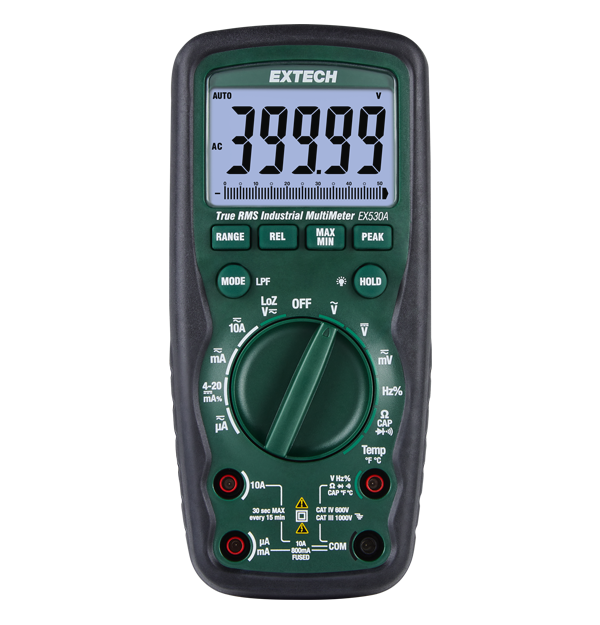

Extech EX530A

Heavy Duty True RMS Industrial Multimeter

Product Variations

The EX530A multimeter is ideal for use in the outdoors, on boats, and in any harsh industrial environment. Waterproof to IP67 standards, it has a double molded housing and is drop-proof up to 2 m (6.5 ft) with a safety rating of CAT IV-600 V. It measures AC/DC voltage and current, resistance, capacitance, electronic and electrical frequency, temperature, 4 mA to 20 mA, and duty cycle. Additional features include: ±0.06% basic accuracy, continuity beeper, diode test (2.8 V open circuit voltage), 50,000 count resolutions, backlit LCD with barograph, peak hold, min/max, relative mode, data hold and 1000 V input protection for all functions. Comes complete with double-molded test leads, type K thermocouple -45°C to 760°C (-50°F to 1400°F), bead wire temperature probe -20°C to 250°C (-4°F to 482°F), magnetic hanging strap, case, and a 9 V battery.

True RMS DMM with 50,000 count large LCD screen, temperature function, and waterproof housing.
AC/DC voltage & current, resistance, capacitance, frequency, temperature, duty cycle, and diode/continuity.
Complete with double molded test leads, magnetic hanging strap, Type K thermocouple, bead wire temperature probe, carrying case, and 9 V battery.

사양

일반 사양
AC 전류 0.1µA~10A
AC 전압 1mV~1000V
DC 전류 0.1µA~10A
DC 전압 0.1mV~1000V
사용률 0.1~99.9%
연속성
온도(K형) 최대 해상도 -45°C~760°C
저항 0.01Ω~50MΩ
주파수 전기: 0.001Hz~10MHz, 전자: 0.01Hz~1kHz
커패시턴스 0.01nF~99.99mF
트루 RMS
추가 정보
IP등급 IP67
디스플레이 50,000 카운트 세그먼트 LCD
무게 380g
보증 3년
안전 범주 CAT IV-600V
인증 CE, UL
전원 9V 배터리 1개
크기 183mm × 83mm × 55mm
