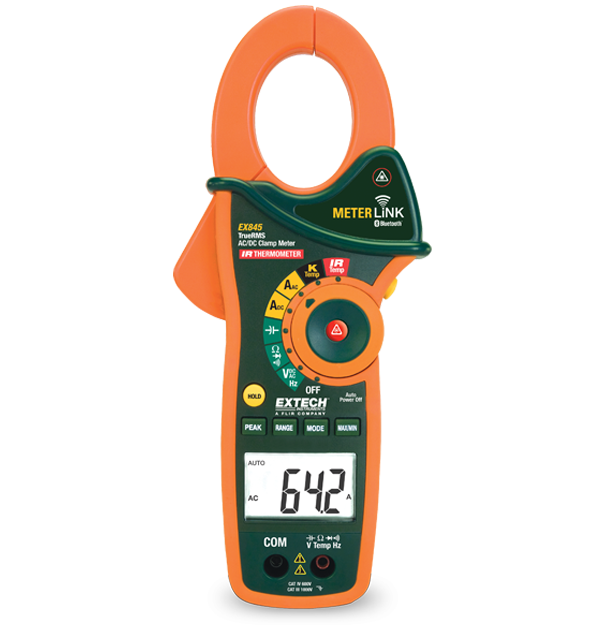

Extech EX845
1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™
The Extech EX845 is a CAT IV True RMS 1000 A AC/DC clamp meter/multimeter with a built in IR Thermometer and wireless capability. The MeterLink™ Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras in order to incorporate meter readings with thermal images. Manual data collection results in unnecessary complexity and risk. MeterLink eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image. Complete with CAT IV test leads, 9 V battery, Type K probe, pouch case, and Professional Test Lead Set.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 0.1 to 1000A |
| AC 전류 기본 정확도 | ±2.8% |
| AC 전압 | 0.1mV to 1000V |
| AC 전압 기본 정확도 | ±1.5% |
| DC 전류 | 0.1 to 1000A |
| DC 전류 기본 정확도 | ±2.8% |
| DC 전압 | 0.1mV to 1000V |
| DC 전압 기본 정확도 | ±2.8% |
| 다이오드 검사 | Yes |
| 돌입 전류 | Yes |
| 연속성 | Yes |
| 온도(IR) 최대 해상도 | ±2.0% of reading or ±4°F/±2°C |
| 온도(K형) 최대 해상도 | -4 to 1400°F (-20 to 760°C) |
| 온도(N형) | ±(3% of reading + 9°F/5°C) |
| 온도(접촉) 기본 정확도 | -58 to 518°F (-50 to 270°C) |
| 저항 | 0.1 to 40MΩ |
| 주파수 | 0.001kHz to 4kHz |
| 주파수 기본 정확도 | ±1.5% |
| 커패시턴스 | 0.001nF to 40,000µF |
| 턱 크기 | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 13.6oz (386g) |
| 보증 | 3 years |
| 안전 범주 | CATIII - 1000V, CATIV - 600V |
| 인증 | CE, ETL |
| 전원 | 1 × 9V battery |
| 크기 | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
