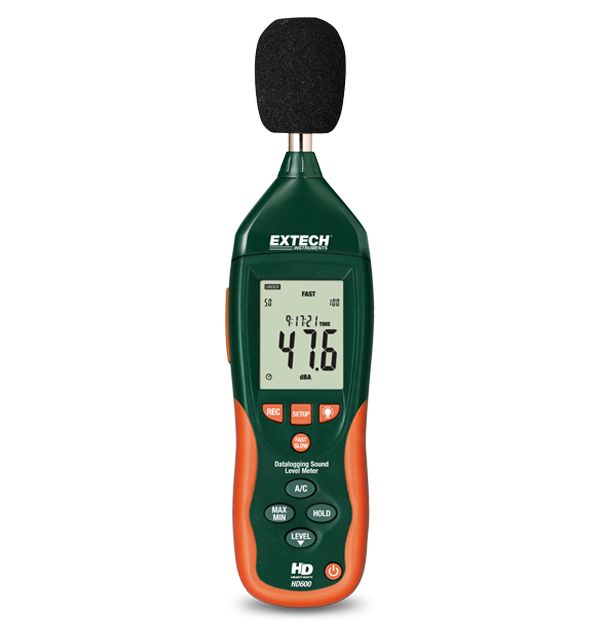

Extech HD600
Datalogging Sound Level Meter
The Extech HD600 Datalogging Sound Level Meter meets ANSI and IEC 61672-1 Type 2 standards. It has three measuring ranges from 30 dB to 130 dB with ± 1.4 dB accuracy. In addition to the LCD digital display, an analog bargraph provides easy viewing of fast changing sound levels. The unit features a rugged double molded housing and a built-in stand. Meter comes with USB cable, Windows compatible software, windscreen, tripod, hard carrying case, 9 V battery, and user manual.
사양
| 일반 사양 | |
|---|---|
| PC 인터페이스 | USB |
| 가중치 | A,C |
| 마이크 | Condenser, 0.5” (12.7mm) |
| 메모리 | 20,000 records |
| 사운드 범위(dB) | 30 to 130dB |
| 사운드 범위(dB) 기본 정확도 | ±1.4dB |
| 아날로그 출력 | AC/DC |
| 응답 시간 | Fast/Slow |
| 추가 정보 | |
|---|---|
| 무게 | 12.3oz (350g) |
| 보증 | 3 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 10 × 2.9 × 2" (255 × 75 × 50mm) |
리소스 및 지원
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD600 Software
User Manual
Extech HD600 User Manual
Certification
Extech HD600 Declaration of Conformity
Datasheet
Extech HD600 Datasheet
