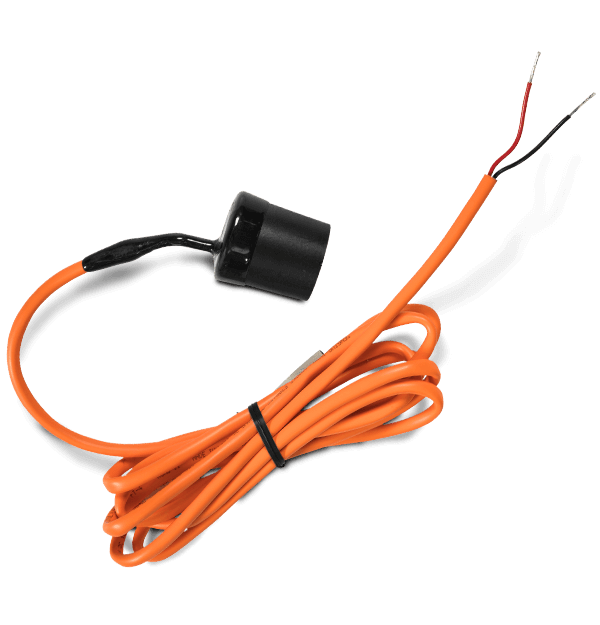

intelliRock III Maturity Logger

Real-Time Concrete Strength Logger

intelliRock Maturity Loggers analyze the time and temperature profile of in–place concrete to calculate its strength in real–time with the push of a button. The maturity loggers are based on ASTM C 1074 "Standard Practice for Estimating Concrete Strength by the Maturity Method."

Document Early Strength and Temperature Information
Speed up concrete operations and extend the construction calendar in cooler weather
Improve quality control with early validation of batching consistency while decreasing labor and material costs
The logger stores the current maturity and temperature value every minute for 180 days

사양

측정 및 분석
NIST 추적 배치 검사 Yes
고유 식별 ID Yes
과부하 선량률 범위 10 mSv/h to 500 mSv/h (1 rem/h to 50 rem/h)
교정 곡선 Holds 5 calibration curves for strength conversions
기록기 데이터 저장 999 logger downloads
만기 Yes
만기 통합 기간 1 minute
시간 정확도 1 minute per month
시점 Yes
온도 Yes
온도 측정률 1 minute (resolution for min/max)
온도 해상도 1°C
작동 기간 180 days
최대 온도 측정 범위 -20°C to 125°C (-4°F to 257°F)
최대 저장 시간 및 온도 85°C (185°F) for 5 years
환경 및 인증
인증 및 기준/표준 ASTM C 1074
