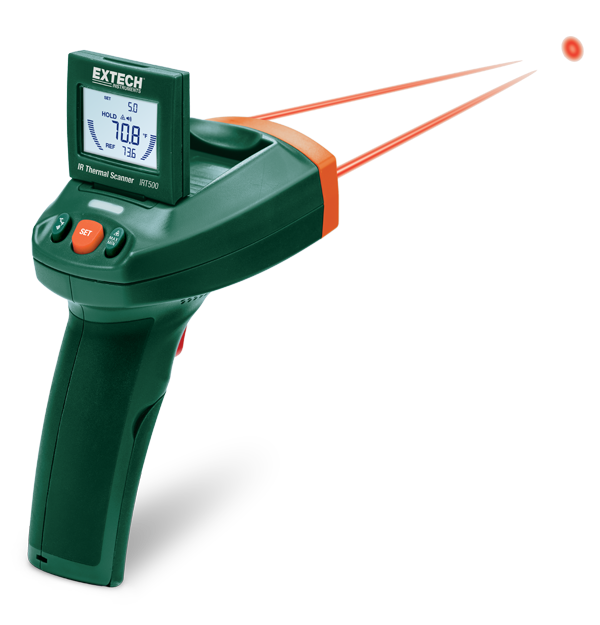

Extech IRT500
Dual Laser IR Thermal Scanner with Adjustable Display
More than just an IR Thermometer, the Extech IRT500 IR Thermal Scanner is designed with a dual laser, an audible/visual alarm feature, 5 preset threshold settings (1°, 5°, 10°, and set min/max), and 3 color LED indicators to make it easy to locate hot and cold spots quickly. Users simply point at targets and scan. The 3 color LED indicates high (red), normal (green), or low (blue) when scanning for temperature irregularities. Likewise, the audible alarm increases as temperature increases or decreases. It features a fast, 150 millisecond response for capturing spikes in temperature. The dual laser indicates ideal measuring distance where the 2 lasers converge to a 2.5 cm (1 in) target spot. Other features include a tilt adjustable LCD display with bright white backlight and dual barographs. Trigger lock function provides continuous use for scanning large areas. Comes with 9 V battery, carrying case, and user manual.
사양
| 일반 사양 | |
|---|---|
| 대상비까지의 거리 | 20:1 |
| 목표물 설정 | dual laser |
| 방사율 | 0.95, fixed |
| 색상 전환 임계값 | 1°, 5°, 10°,set Min, set Max |
| 온도(IR) 최대 해상도 | ±(1% of reading + 3.3 °F/1.5 °C) |
| 온도(RTD) | 0.1 °F/ °C |
| 온도(접촉) 기본 정확도 | -22 to 500 °F (-30 to 260 °C) |
| 추가 정보 | |
|---|---|
| 무게 | 5.7oz (163g) |
| 보증 | 2 years |
| 인증 | CE |
| 전원 | 1 × 9V battery |
| 크기 | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
리소스 및 지원
Datasheet
Extech IRT500 Datasheet
User Manual
Extech IRT500 User Manual
Certification
Extech IRT500 Declaration of Conformity
