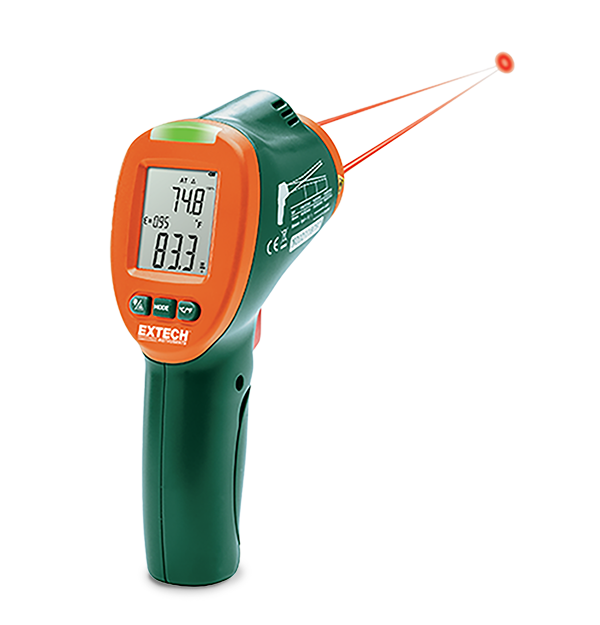

Extech IRT600
Dual Laser IR Thermal Condensation Scanner
The Extech IRT600 is a Dual Laser IR Thermal Condensation Scanner. This 12:1 infrared psychrometer with a 3 color LED dew point alarm measures temperature and humidity, then calculates dew point and warns the user when conditions for mold growth exist. It can be great for processes that require surface temperature control and monitoring. A green LED changes to yellow and then to red as the surface temperature reading gets closer to and then equals the calculated dew point reading. Dual lasers indicate ideal measuring distance where the two lasers converge to a 2.5 cm (1 in) target spot. Complete with case and 9 V battery.
사양
| 일반 사양 | |
|---|---|
| 대상비까지의 거리 | 12:1 |
| 목표물 설정 | dual laser |
| 방사율 | 0.95, fixed |
| 상대 습도 | 20 to 80% |
| 상대 습도 기본 정확도 | |
| 온도(IR) 최대 해상도 | |
| 온도(RTD) | 0.1 |
| 온도(공기) | 32 to 122 |
| 온도(공기) 기본 정확도 | |
| 온도(공기) 최대 해상도 | 0.1 |
| 온도(접촉) 기본 정확도 | -22 to 662 |
| 응답 시간 | 150ms |
| 이슬점 | -22 to 212 |
| 추가 정보 | |
|---|---|
| 무게 | 5.7oz (163g) |
| 보증 | 2 years |
| 인증 | CE, NIST (limited to certain functions) |
| 전원 | 1 × 9V battery |
| 크기 | 6.6 × 3.2 × 2.3" (168 × 82 × 58mm) |
리소스 및 지원
Datasheet
Extech IRT600 Datasheet
User Manual
Extech IRT600 User Manual
Certification
Extech IRT600 Declaration of Conformity
