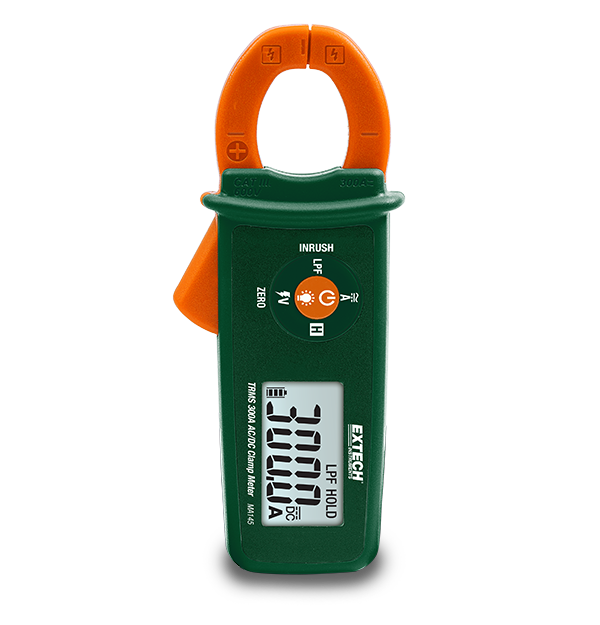

Extech MA145
True RMS 300A AC/DC Clamp Meter
The MA145 is a Compact AC/DC Clamp Meter with NCV detector. This clamp meter takes True RMS measurements for accurate readings of noisy, distorted, or non-sinusoidal waveforms. The MA145 can measure up to 300 A AC and DC. Complete with carrying case and two LR44 batteries. UL listed with a CAT III 600 V safety rating.
사양
| 일반 사양 | |
|---|---|
| AC 전류 | 60A, 300A |
| AC 전류 기본 정확도 | ±1.5% |
| AC 전류 최대 해상도 | 0.01A |
| DC 전류 | 60A, 300A |
| DC 전류 기본 정확도 | ±1.5% |
| DC 전류 최대 해상도 | 0.01A |
| 비접촉 전압(NCV) 감지기 | 80 to 600VAC |
| 턱 크기 | 0.8" (22mm), conductors up to 300MCM |
| 트루 RMS | Yes |
| 추가 정보 | |
|---|---|
| 무게 | 4.9oz (140g) |
| 보증 | 2 years |
| 안전 범주 | CATIII - 600V |
| 인증 | CE, UL |
| 전원 | 2 × LR44 (1.5V) batteries |
| 크기 | 5.8 × 2.4 × 1.2" (147 × 60 × 31mm) |
리소스 및 지원
User Manual
Extech MA145 User Manual
Certification
Extech MA145 Declaration of Conformity
Datasheet
Extech MA140 MA145 Datasheet
Export Restrictions
The information contained in this page pertains to products that may be subject to the International Traffic in Arms Regulations (ITAR) (22 C.F.R. Sections 120-130) or the Export Administration Regulations (EAR) (15 C.F.R. Sections 730-774) depending upon specifications for the final product; jurisdiction and classification will be provided upon request.
